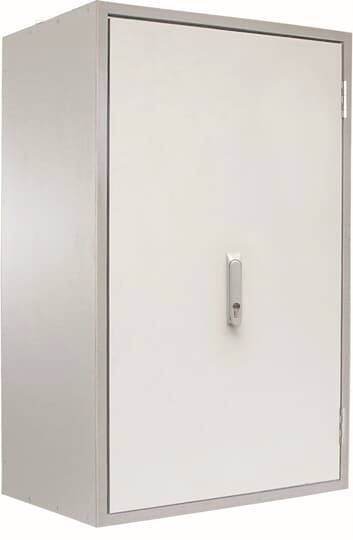

Striebel & John 2CPX043281R9999 2/5AF302 Fire-proof wall enclosure Surface-mount No. of rows = 2 Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Fire-proof wall enclosure
No. of rows
2
Mounting type
Surface-mount
Width
648 mm
Height
1498 mm
Datasheet (PDF)
Technical specifications
- Product type
Fire-proof wall enclosure
- No. of rows
2
- Mounting type
Surface-mount
- Factory colour
Grey
- Width
648 mm
- Height
1498 mm
- Dim
(W x H x D) 648 x 1498 x 349 mm
- Depth
349 mm
- Content
1 pc(s)
Surface mounted (plaster)
II
Grey
648 mm
1498 mm
349 mm
7035
FALSE
Other
240 mm
2
None
2
240 mm
E30
24
FALSE
Other
192
Single
IP44
FALSE
TRUE
FALSE
72 mm
72 mm
With notch
2
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3119457 Striebel & John 2CPX043281R9999 2/5AF302 Fire-proof wall enclosure Surface-mount No. of rows = 2 Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3119457 Striebel & John 2CPX043281R9999 2/5AF302 Fire-proof wall enclosure Surface-mount No. of rows = 2 Content 1 pc(s)
Description
Fire protection wall cabinet, AF series, empty cabinet, installation type: Surface-mounted, for indoor use, with door, building material according to A2 - non-flammable, tested according to DIN 4102-1, fire resistance 30 min. Tested according to DIN 4102-2, smoke-proof, cold-smoke proof, rated operating voltage Ue 400V AC 50/60 Hz, coated surface similar to RAL 7035, non-combustible housing, single-leaf door, non-combustible door, with pivot lever with half cylinder, door opening angle 180 degrees, right stop, cable entry above cable bulkhead, below cable bulkhead, Prepared for removal with CombiLine modules on EDF assembly frame
