Striebel & John 2CPX043400R9999 3/5VF10 Door Front panel fixed Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Door
Mounting type
Front panel fixed
Width
1045 mm
Height
1645 mm
Depth
51 mm
Datasheet (PDF)
Technical specifications
- Product type
Door
- Mounting type
Front panel fixed
- Factory colour
Grey
- Width
1045 mm
- Height
1645 mm
- Dim
(W x H x D) 1045 x 1645 x 51 mm
- Depth
51 mm
- Content
1 pc(s)
Grey
1045 mm
Protective door
1645 mm
51 mm
Other
IP54
Other
FALSE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3119493 Striebel & John 2CPX043400R9999 3/5VF10 Door Front panel fixed Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3119493 Striebel & John 2CPX043400R9999 3/5VF10 Door Front panel fixed Content 1 pc(s)
Description

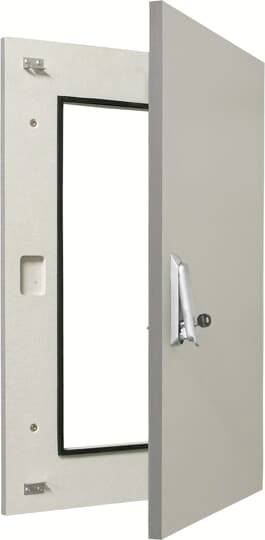

Fire protection door, VF series, for indoor use, with bezel and door, A2 building material - non-flammable, tested according to DIN 4102-1, 30 min fire resistance. Tested according to DIN 4102-2, smoke-proof, cold-smoke-proof, surface-coated similar to RAL 7035, frame and door made of non-combustible material, single-leaf door, with pivot lever with half-cylinder, door opening angle 150 degrees, right door stop, For mounting in front of an existing UP-distribution
