Striebel & John 2CPX043425R9999 MA250ALT CombiLine Module For ATS Compact OTM200-250 Switch module 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switch module
Number of pins
4
Content
1 pc(s)
Width
500 mm
Height
450 mm
Datasheet (PDF)
Technical specifications
- Product type
Switch module
- Number of pins
4
- Content
1 pc(s)
500 mm
450 mm
275 mm
TRUE
TRUE
4
FALSE
0
FALSE
FALSE
250 A
FALSE
TRUE
FALSE
FALSE
FALSE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3119505 Striebel & John 2CPX043425R9999 MA250ALT CombiLine Module For ATS Compact OTM200-250 Switch module 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3119505 Striebel & John 2CPX043425R9999 MA250ALT CombiLine Module For ATS Compact OTM200-250 Switch module 1 pc(s)
Description

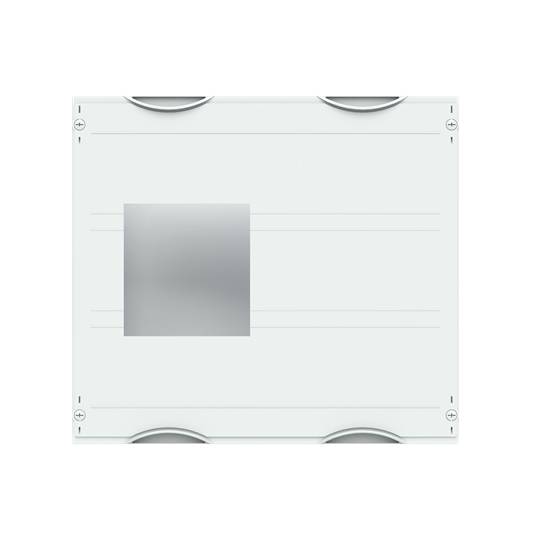

Interior design module, CombiLine, installed in cabinet, for ABB ATS TrueOne OTM200-250 switch, Snap-in unit 3 RE = 450 mm, field width 2 =500 mm, 72 space units, rated current In max. 250 A, plastic covers, 90 degree pressure rotary shutter, RAL 7035, version of the cover: with cut-out, can be used from a cabinet depth of 275 mm, WR mounting scaffold must be ordered separately
