Striebel & John 2CPX052161R9999 CA13B Distribution board Surface-mount No. of rows = 3 Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Distribution board
No. of rows
3
Mounting type
Surface-mount
Width
300 mm
Height
500 mm
Datasheet (PDF)
Technical specifications
- Product type
Distribution board
- No. of rows
3
- Mounting type
Surface-mount
- Factory colour
White
- Width
300 mm
- Height
500 mm
- Dim
(W x H x D) 300 x 500 x 160 mm
- Depth
160 mm
- Content
1 pc(s)
Surface mounted (plaster)
White
300 mm
500 mm
160 mm
9016
FALSE
0 mm
3
0 mm
Optional
0 mm
152 mm
FALSE
Steel
12
Other
IP30
FALSE
FALSE
Closed
FALSE
FALSE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3119752 Striebel & John 2CPX052161R9999 CA13B Distribution board Surface-mount No. of rows = 3 Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3119752 Striebel & John 2CPX052161R9999 CA13B Distribution board Surface-mount No. of rows = 3 Content 1 pc(s)
Description

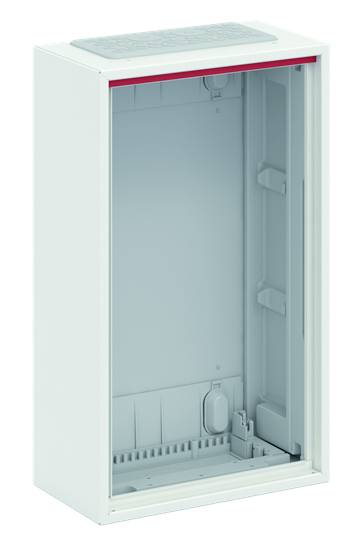

The small distribution box of the series Comfortline Compact-A empty cabinet are designed for surface mounting. The distributor can be used indoors such as in house construction, purpose-built or industrial applications. The housings are supplied without cover frame and door and have upper, lower and side cable entry possibilities. However serial wise, each field has the upper and lower mounted cable interception option, which simplifies the cable laying considerably. The QMS snap-in technology allows the expansion with distribution panels and combination sets to be implemented individually according to customer requirements. The housings meet the protection class IP44 and have a VDE approval mark. Colour white RAL 9016, powder-coated.
