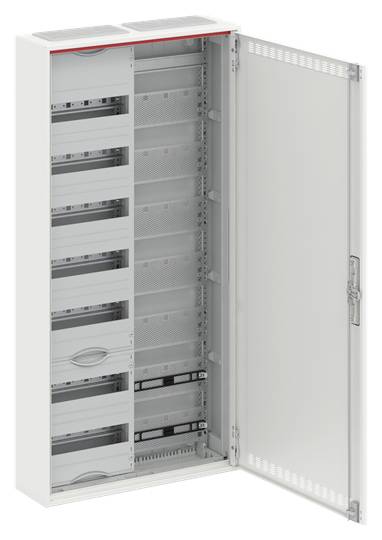

Striebel & John 2CPX052223R9999 CA27VMW Distribution board Surface-mount No. of rows = 7 Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Distribution board
No. of rows
7
Mounting type
Surface-mount
Width
550 mm
Height
1100 mm
Datasheet (PDF)
Technical specifications
- Product type
Distribution board
- No. of rows
7
- Mounting type
Surface-mount
- Factory colour
White
- Width
550 mm
- Height
1100 mm
- Dim
(W x H x D) 550 x 1100 x 160 mm
- Depth
160 mm
- Content
1 pc(s)
Surface mounted (plaster)
White
550 mm
1100 mm
160 mm
9016
TRUE
0 mm
7
0 mm
Door
0 mm
152 mm
TRUE
Steel
24
Other
IP30
FALSE
TRUE
Closed
TRUE
TRUE
TRUE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3119814 Striebel & John 2CPX052223R9999 CA27VMW Distribution board Surface-mount No. of rows = 7 Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3119814 Striebel & John 2CPX052223R9999 CA27VMW Distribution board Surface-mount No. of rows = 7 Content 1 pc(s)
Description
The small media distributors of the series Comfortline Compact-A are designed for surface mounting. The distributor are used, for example, in the interior of residential and functional buildings. The housings are supplied with frame and Wifi door and have upper, lower and side cable entry options. The integrated perforated plate mounting plate and mounting accessories allow devices such as router and switch to be installed easily. The QMS snap-in technology allows the expansion with distribution panels and combination sets to be implemented individually according to customer requirements. The housings meet the protection class IP44. Colour white RAL 9016 and powder-coated.
