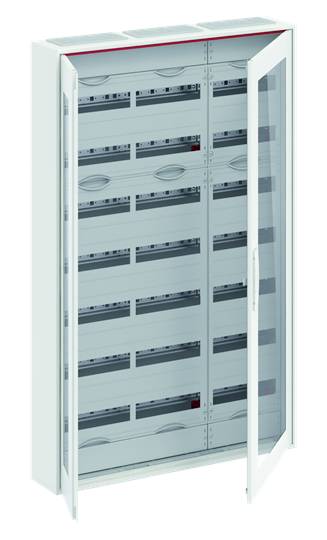

Striebel & John 2CPX052261R9999 CA38RT Distribution board Surface-mount No. of rows = 7 Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Distribution board
No. of rows
7
Mounting type
Surface-mount
Width
800 mm
Height
1250 mm
Datasheet (PDF)
Technical specifications
- Product type
Distribution board
- No. of rows
7
- Mounting type
Surface-mount
- Factory colour
White
- Width
800 mm
- Height
1250 mm
- Dim
(W x H x D) 800 x 1250 x 160 mm
- Depth
160 mm
- Content
1 pc(s)
Surface mounted (plaster)
White
800 mm
1250 mm
160 mm
9016
FALSE
0 mm
7
0 mm
Door
0 mm
152 mm
TRUE
Steel
36
Other
IP44
TRUE
TRUE
Closed
TRUE
TRUE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3119852 Striebel & John 2CPX052261R9999 CA38RT Distribution board Surface-mount No. of rows = 7 Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3119852 Striebel & John 2CPX052261R9999 CA38RT Distribution board Surface-mount No. of rows = 7 Content 1 pc(s)
Description
The small distribution box of the series Comfortline Compact-A are designed for surface mounting. The junction box can be used, for example, in the interior of residential, commercial or industrial buildings. The housings are supplied with frame and door and have upper, lower and side cable entry options. However serial wise, each field has the upper and lower mounted cable interception option, which simplifies the cable laying considerably. The QMS snap-in technology allows the expansion with distribution panels and combination sets to be implemented individually according to customer requirements. The housings meet the protection class IP44 and have a VDE approval mark. Colour white RAL 9016 and powder-coated.
