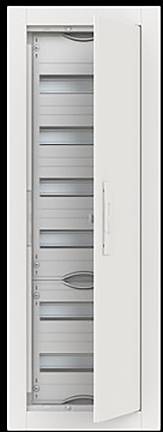

Striebel & John 2CPX052609R9999 CU16V Switchboard cabinet Flush mount No. of partitions = 12 No. of rows = 6 Content 1 p
EAN:
Part number:
Item no:
Product type
Switchboard cabinet
No. of partitions
12
No. of rows
6
Mounting type
Flush mount
Width
365 mm
Technical specifications
- Height: 1014 mm
- Width 365 mm
- Depth: 125 mm
- With mounting plate: No.
- Installation depth: 110 mm
- Mounting option: No.
- Mounting type: Flush-mounted
- Colour: white
- RAL number: 9016
- Protection class (IP) IP30
- Mounting width 307 mm
- Mounting height 992 mm
- Type of cover: Door
- Cover version: Closed
- Type of door: Simple
- Transparent cover / door: No.
- With lock: Yes
- Internal depth 76 mm
- Number of rows: 6
- Width in division units: 12
- Material of housing: Steel
- EMC type: No.
- Door transmitting the signal: No.
- Type of closure: Other
- Earth terminal block: Yes
- Neutral terminal block: Yes
- DIN rail: Yes
- Product type
Switchboard cabinet
- No. of partitions
12
- with PE and N terminals
Yes
- No. of rows
6
- Mounting type
Flush mount
- Width
365 mm
- Height
1014 mm
- Dim
(W x H x D) 365 x 1014 x 125 mm
- Depth
125 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3548042 Striebel & John 2CPX052609R9999 CU16V Switchboard cabinet Flush mount No. of partitions = 12 No. of rows = 6 Content 1 p
Description
The small distribution box of the series Comfortline Compact flush-mounted are designed for flush/ - hollow wall mounting. They impress with many new and unique technical features.
Thus, a series distance of 125 mm enables an easy and efficient installation of the DIN-rail mounting devices. The QMS snap-in technology allows the expansion with distribution panels and combination sets to be implemented individually according to customer requirements. The cases are delivered with cover frame and door. The discreet design of the photo frame allows only a wall application of 15 mm, the built-in plaster balance adapts the small distributor to any environment. Due to the low installation depth of 110 mm, the small distributors can easily be mounted in hollow walls with simple planking. A special hollow wall set simplifies and accelerate the installation in hollow walls significantly and makes each small distributor in a hollow wall. The housings have access points for the cable entry at the top, bottom, sides as well as backwards. The standard removable cable entry slide simplifies and speeds up the wiring considerably.
This text is machine translated.
Thus, a series distance of 125 mm enables an easy and efficient installation of the DIN-rail mounting devices. The QMS snap-in technology allows the expansion with distribution panels and combination sets to be implemented individually according to customer requirements. The cases are delivered with cover frame and door. The discreet design of the photo frame allows only a wall application of 15 mm, the built-in plaster balance adapts the small distributor to any environment. Due to the low installation depth of 110 mm, the small distributors can easily be mounted in hollow walls with simple planking. A special hollow wall set simplifies and accelerate the installation in hollow walls significantly and makes each small distributor in a hollow wall. The housings have access points for the cable entry at the top, bottom, sides as well as backwards. The standard removable cable entry slide simplifies and speeds up the wiring considerably.
This text is machine translated.
