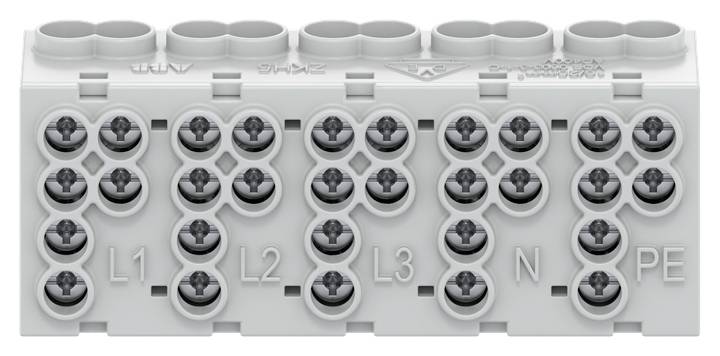

Striebel & John 2CPX054070R9999 ZKH5 main line terminal 5 pin 2x25mm2 /1x16mm2 Main tap terminal 1 pc(s)
EAN:
Part number:
Item no:
Product type
Main tap terminal
Number of pins
5
Content
1 pc(s)
Nominal current
63 A
Width
104 mm
Datasheet (PDF)
Technical specifications
- Product type
Main tap terminal
- Number of pins
5
- Content
1 pc(s)
63 A
104 mm
43 mm
31 mm
Screwing
5
10
5
TRUE
TRUE
TRUE
TRUE
FALSE
TRUE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3120199 Striebel & John 2CPX054070R9999 ZKH5 main line terminal 5 pin 2x25mm2 /1x16mm2 Main tap terminal 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3120199 Striebel & John 2CPX054070R9999 ZKH5 main line terminal 5 pin 2x25mm2 /1x16mm2 Main tap terminal 1 pc(s)
Description
Main power terminal 2x 25 mm2 / 1x 16 mm2 - according to DIN VDE 0603-2 design. C Finger-safe. For mounting on the meter support plate, for copper conductors per pin 2 x 25 mm2 and 1 x 16 mm2, multi-wired In = 63 A, 5-pin, clamping points 5 x 3, minimum cross-section 1.5mm2
