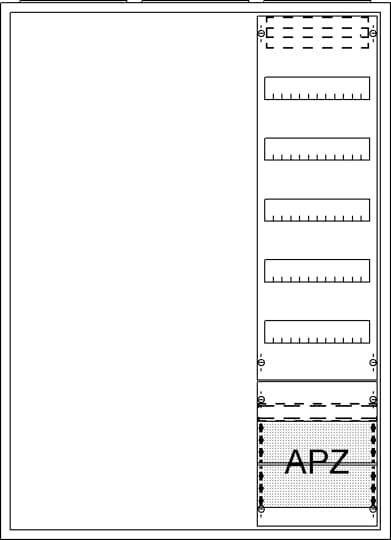

Striebel & John 2CPX054298R9999 AA47A1AMM Switchboard cabinet Flush mount, Surface-mount, Semi-recessed No. of partition
EAN:
Part number:
Item no:
Product type
Switchboard cabinet
No. of partitions
3
No. of rows
57
Mounting type
Flush mount
Surface-mount
Semi-recessed
Width
1050 mm
Datasheet (PDF)
Technical specifications
- Product type
Switchboard cabinet
- No. of partitions
3
- No. of rows
57
- Mounting type
Flush mount
Surface-mount
Semi-recessed
- Width
1050 mm
- Height
1100 mm
- Dim
(W x H x D) 1050 x 1100 x 215 mm
- Depth
215 mm
- Content
1 pc(s)
Surface mounted/recessed mounted/partially recessed mounted
1050 mm
1-story
1100 mm
215 mm
FALSE
215 mm
63 A
3
1100 mm
1050 mm
Steel plate
0
57
0
With DIN rails (top hat rails)
IP31
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3120390 Striebel & John 2CPX054298R9999 AA47A1AMM Switchboard cabinet Flush mount, Surface-mount, Semi-recessed No. of partition
User & Safety Instructions
User & Safety Instructions 3120390 Striebel & John 2CPX054298R9999 AA47A1AMM Switchboard cabinet Flush mount, Surface-mount, Semi-recessed No. of partition
Description
The extension cabinets of the Comfortline series without specific meter field are designed for surface mounting and partly countersunk mounting. The junction box can be used, for example, in the interior of residential, functional and industrial buildings. Due to the modular interior of the cabinet, the meter field can be selected directly by the customer; as such, the housing can be used universally across Germany. Only the specific counter field related to the regional conditions still has to be selected. This increases flexibility and simultaneously reduces logistics costs.
The housings are supplied with a door and have upper, lower and side cable entry options. One advantage is the wide 120° door opening angle. Furthermore, the doors can be easily suspended and adjusted without the need for any tools. Particular mention must be made of the cable routing channels integrated in the fields, which can be used, for example, for the laying of the power supply or the patch cable of the intelligent measuring system. The flat design of the distributor allows it to be integrated very well in any environment. The housings fulfill the protection class IP44 (IP31 according to DIN VDE 0603-1). Applicable standards: DIN VDE 0603-1, DIN 43870-1, color white RAL 9016 and powder coated.
This text is machine translated.
The housings are supplied with a door and have upper, lower and side cable entry options. One advantage is the wide 120° door opening angle. Furthermore, the doors can be easily suspended and adjusted without the need for any tools. Particular mention must be made of the cable routing channels integrated in the fields, which can be used, for example, for the laying of the power supply or the patch cable of the intelligent measuring system. The flat design of the distributor allows it to be integrated very well in any environment. The housings fulfill the protection class IP44 (IP31 according to DIN VDE 0603-1). Applicable standards: DIN VDE 0603-1, DIN 43870-1, color white RAL 9016 and powder coated.
