Image similar

A close-up of a machine control panel in an industrial setting, with exposed cables and buttons, next to a rain-streaked window.

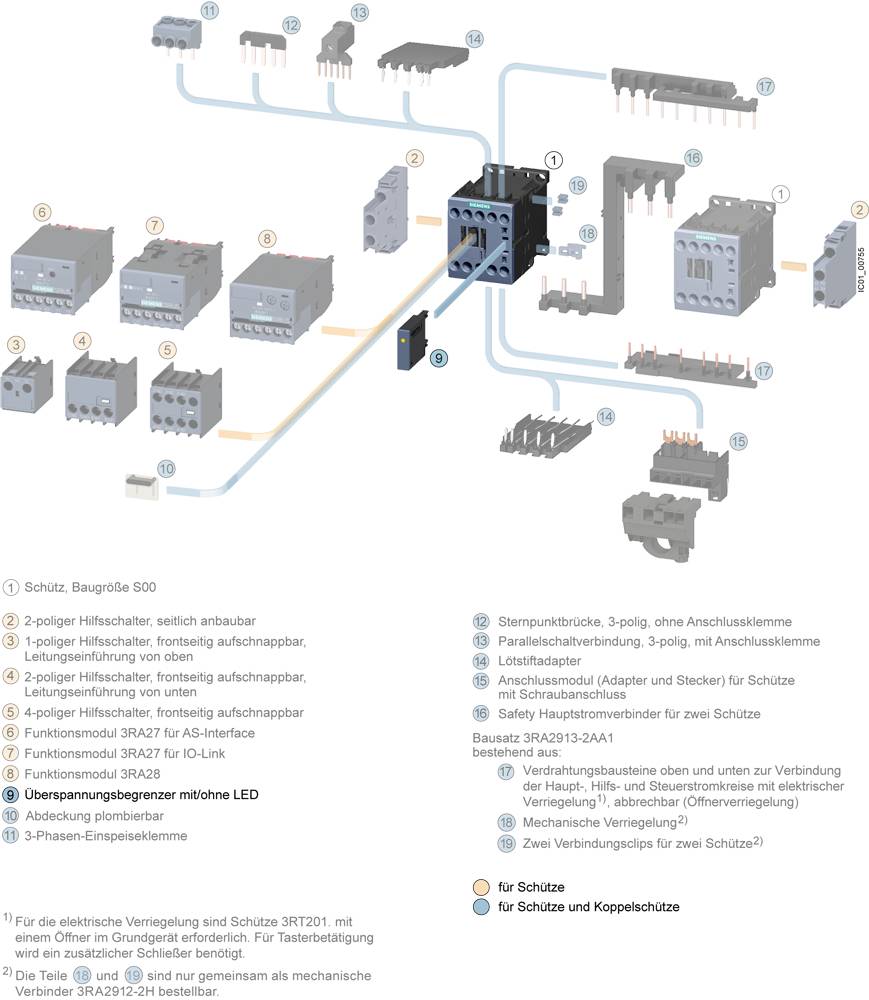

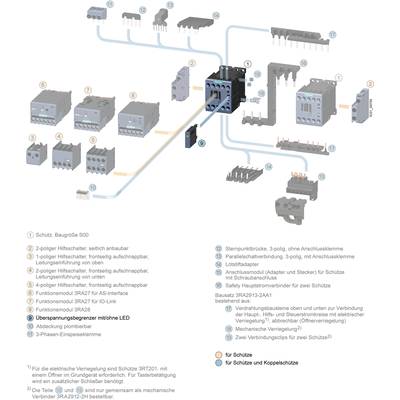

'Diagram of rifles and accessories with connection options. Includes descriptions of components and their functions.'

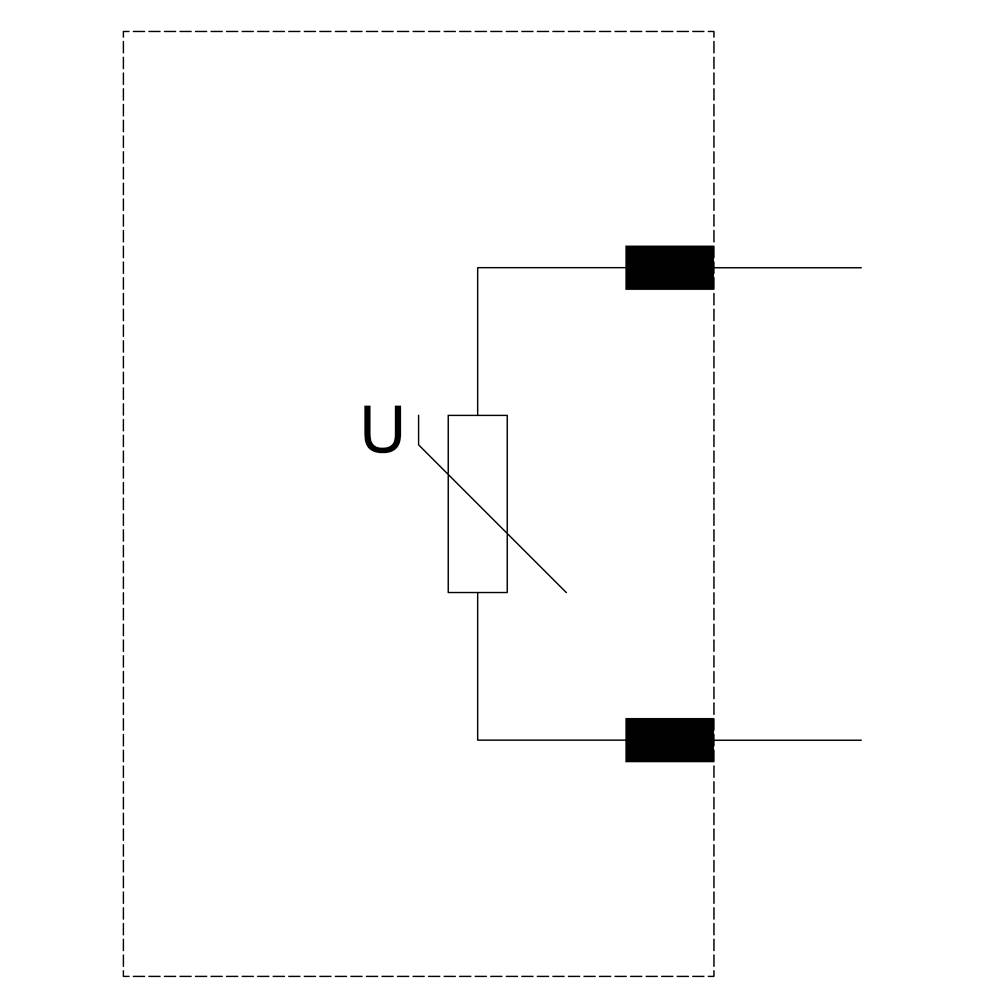

Circuit diagram of an electrical circuit with a protective switch. Two conductors run through the protective switch to a consumer.

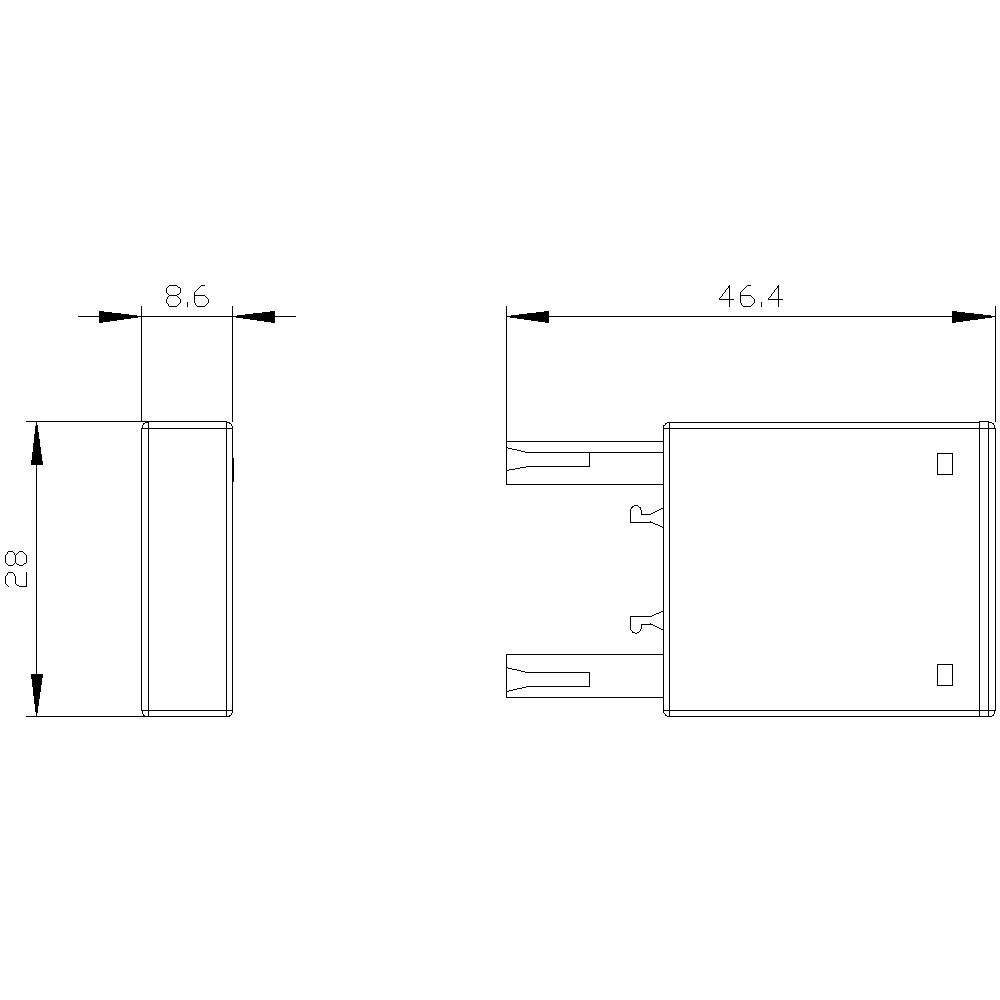

Technical drawing of a rectangular plug with dimensions: Width 8.6 mm, Length 46.4 mm, Height 28 mm. Side and front view.

1/5

Image similar

Product type

Surge protection

Content

1 pc(s)

Features

+ varistor

Mounting type

Push-fit

Min. operating voltage

48 V AC

70 V DC

Datasheet (PDF)

Deutsch (Deutschland)

Siemens

Fast track dispatch on Mon, 14 Sep

7 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Set(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Set(s)

Total (€ 14.28 / piece)

€ 14.28

plus VAT.

Only 7 Set(s) available

Report legal concerns

Technical specifications

Contactor size: S00
All mounting positions permitted
Control supply voltage frequency 50/60 Hz

Product type: Surge protection

Content: 1 pc(s)

Features: + varistor

Mounting type: Push-fit

Min. operating voltage: 48 V AC
70 V DC

Max. operating voltage: 127 V AC
150 V DC

Operating voltage: 48, 70 - 127, 150 V AC, V DC

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 9 mm

Height: 46 mm

Length: 28 mm

Dim: (L x W x H) 28 x 9 x 46 mm

RoHS-compliant: Yes

Type: 3RT2916-1BC00

: AC/DC

UKCA: yes

Documents & Downloads

Datasheet

Deutsch (Deutschland)

Datasheet 2863688 Surge protection 3RT29161BC00 + varistor 1 pc(s) Siemens 3RT2916-1BC00

User & Safety Instructions

User & Safety Instructions 2863688 Surge protection 3RT29161BC00 + varistor 1 pc(s) Siemens 3RT2916-1BC00

Description

Overvoltage limiter, varistor, AC48 ... 127V, DC 70 ... 150V, for auxiliary and motor contactors size S00 Simple, efficient, always up-to-date – the SIRIUS system kit.

This text is machine translated.
