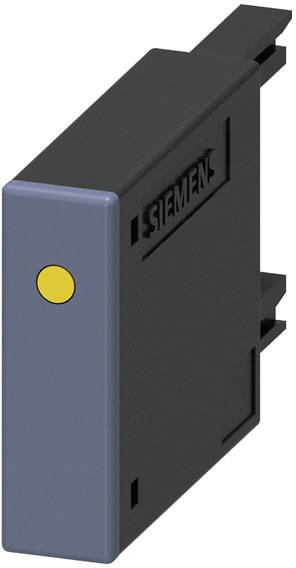

Surge protection 3RT29161LP00 + diode 1 pc(s) Siemens 3RT2916-1LP00
Product type
Surge protection
Content
1 pc(s)
Features
+ diode
Mounting type
Push-fit
Min. operating voltage
150 V DC
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Contactor size: S00
- All mounting positions permitted
- Product type
Surge protection
- Content
1 pc(s)
- Features
+ diode
- Mounting type
Push-fit
- Min. operating voltage
150 V DC
- Max. operating voltage
250 V DC
- Operating voltage
150 - 250 V DC
- Compatible with
Siemens
- Compatible with series
Siemens S00 type
- Min. temperature
-25 °C
- Max. temperature
+60 °C

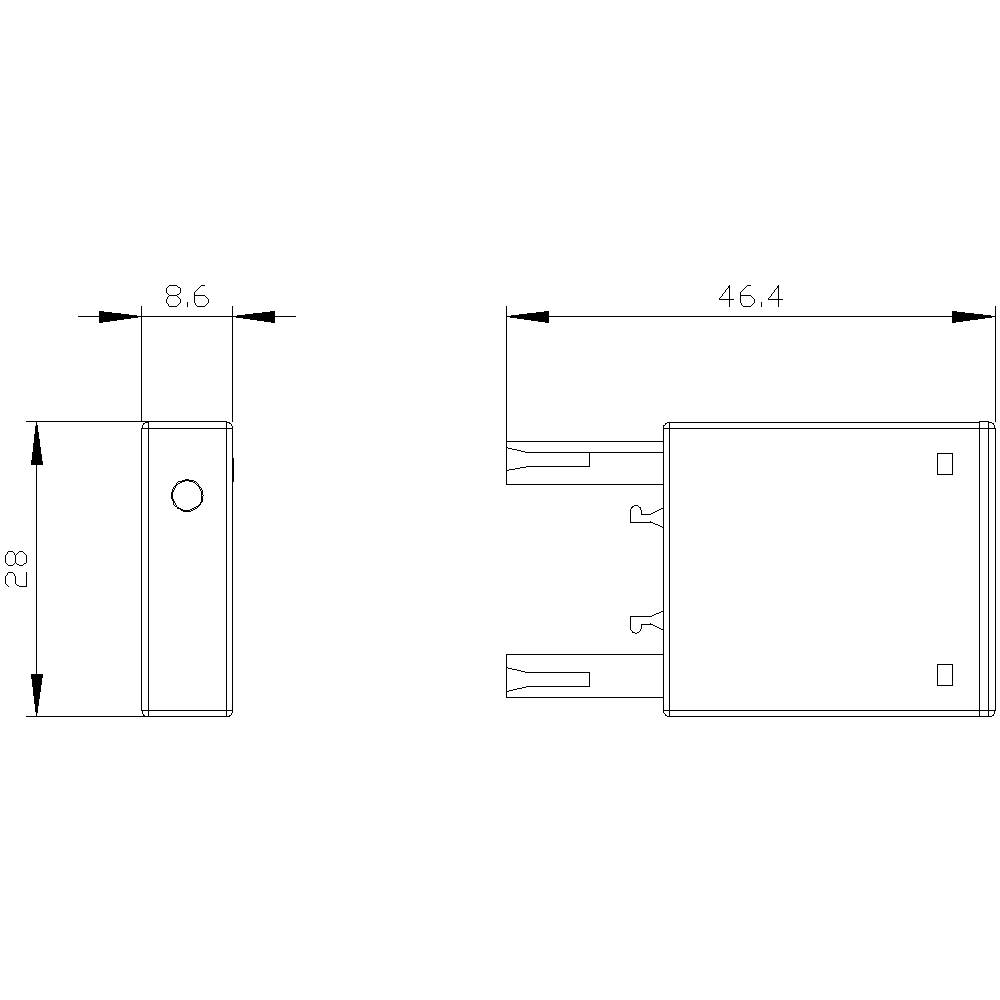

- Width
9 mm
- Height
46 mm
- Length
28 mm
- Dim
(L x W x H) 28 x 9 x 46 mm
- RoHS-compliant
Yes
- Type
3RT2916-1LP00
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2863698 Surge protection 3RT29161LP00 + diode 1 pc(s) Siemens 3RT2916-1LP00
User & Safety Instructions
User & Safety Instructions 2863698 Surge protection 3RT29161LP00 + diode 1 pc(s) Siemens 3RT2916-1LP00
Description

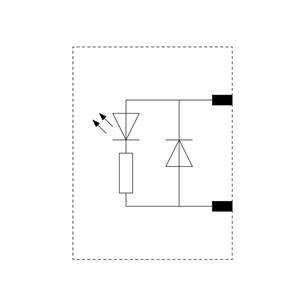

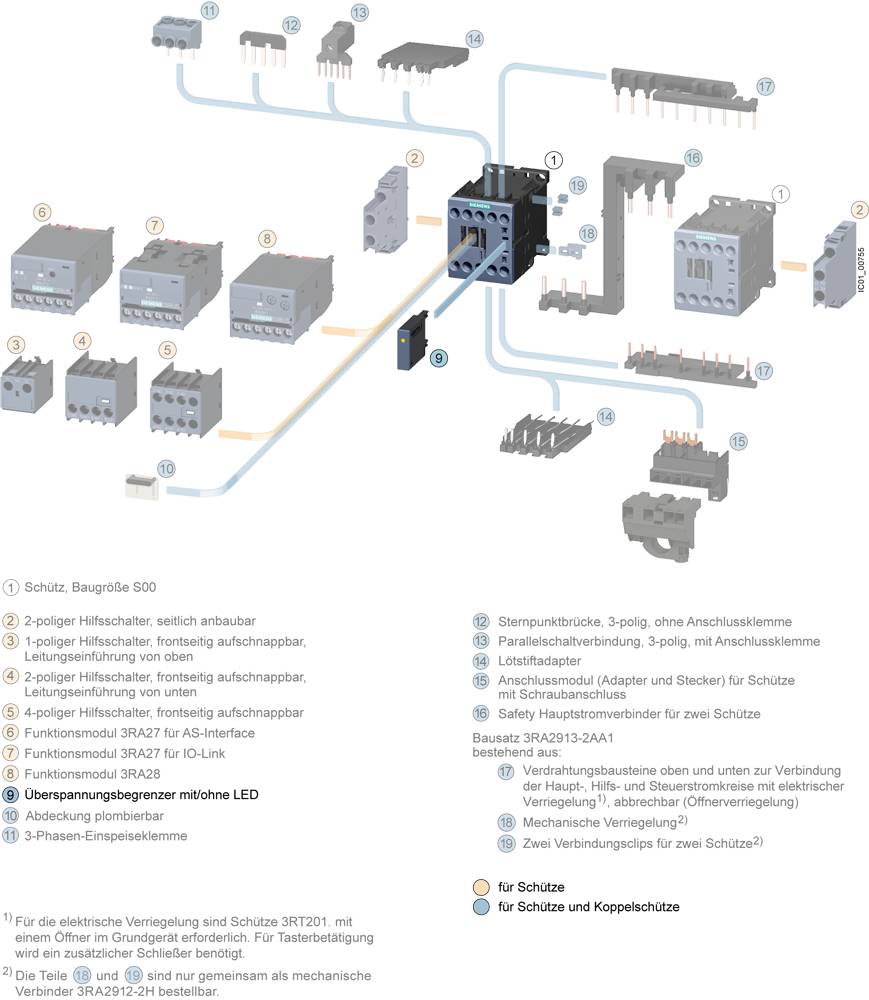

Overvoltage limiter, suppressor diode with LED, DC 150 ... 250 V, for auxiliary and motor contactors size S00 Simple, efficient, always up-to-date – the SIRIUS system kit.
