Surge protection 3RT29361BB00 + varistor Black 1 pc(s) Siemens 3RT2936-1BB00
EAN:
Part number:
Item no:
Product type
Surge protection
Content
1 pc(s)
Features
+ varistor
Factory colour
Black
Mounting type
Push-fit
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 16.80
3
5% = € 0.83
€ 15.97
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 16.80 / piece)
€
Technical specifications
- Voltage type AC/DC
- Size of contactor: S2, S3
- Control supply voltage frequency 60 Hz
- Product type
Surge protection
- Content
1 pc(s)
- Features
+ varistor
- Factory colour
Black
- Mounting type
Push-fit
- Min. operating voltage
24 V AC
24 V DC
- Max. operating voltage
48 V AC
70 V DC
- Operating voltage
24, 24 - 48, 70 V AC, V DC
- Compatible with
Siemens
- Compatible with series
Siemens Sirius series
- Min. temperature
-25 °C
- Max. temperature
+60 °C
- Width
30 mm
- Height
30 mm
- Length
14.5 mm
- Dim
(L x W x H) 14.5 x 30 x 30 mm
- RoHS-compliant
Yes
- Type
3RT2936-1BB00
- Type
3RT 2936-1 BB00
Varistor (voltage-sensitive resistor)
AC/DC
Documents & Downloads
Datasheet
Datasheet 1431003 Surge protection 3RT29361BB00 + varistor Black 1 pc(s) Siemens 3RT2936-1BB00
User & Safety Instructions
User & Safety Instructions 1431003 Surge protection 3RT29361BB00 + varistor Black 1 pc(s) Siemens 3RT2936-1BB00
Description

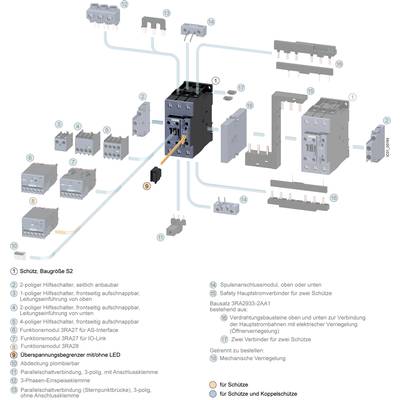

Surge suppressor, varistor, AC 24 ... 48 V, DC 24 ... 70 V, for contactors size S2, S3 Thanks to the mounting axis already in the contactor, the surge suppressor can be inserted very easily and without any effect on the external dimensions.
Simple, efficient, always up-to-date - the SIRIUS modular system.
