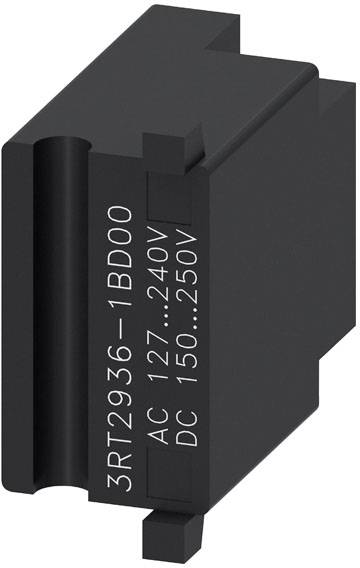

Surge protection 3RT29361BD00 + varistor 1 pc(s) Siemens 3RT2936-1BD00
EAN:
Part number:
Item no:
Product type
Surge protection
Content
1 pc(s)
Features
+ varistor
Mounting type
Push-fit
Min. operating voltage
127 V AC
150 V DC
Datasheet (PDF)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 13.44
3
6% = € 0.74
€ 12.70
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 13.44 / piece)
€ 13.44
plus VAT.
Only 4 Set(s) available
Highlights & Details
Surge suppressor, varistor, AC 127-240V, DC 150-250V
Our service for you
Technical specifications
- Frame size S2, S3
- All mounting positions permitted
- Control supply voltage frequency 50/60 Hz
- Product type
Surge protection
- Content
1 pc(s)
- Features
+ varistor
- Mounting type
Push-fit
- Min. operating voltage
127 V AC
150 V DC
- Max. operating voltage
240 V AC
250 V DC
- Operating voltage
127, 150 - 240, 250 V AC, V DC
- Min. temperature
-25 °C
- Max. temperature
+60 °C

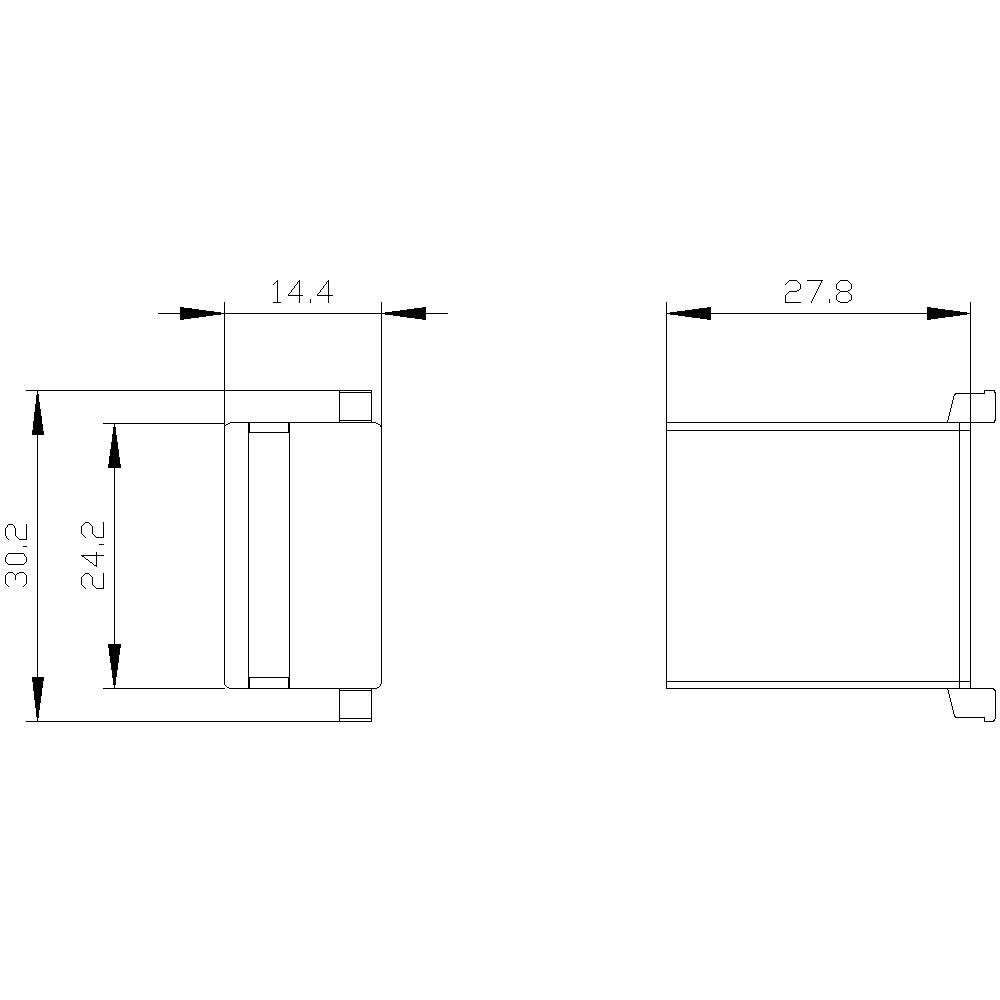

- Width
14.5 mm
- Height
30 mm
- Length
30 mm
- Dim
(L x W x H) 30 x 14.5 x 30 mm
- RoHS-compliant
Yes
- Type
3RT2936-1BD00
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2863699 Surge protection 3RT29361BD00 + varistor 1 pc(s) Siemens 3RT2936-1BD00
User & Safety Instructions
User & Safety Instructions 2863699 Surge protection 3RT29361BD00 + varistor 1 pc(s) Siemens 3RT2936-1BD00
Description

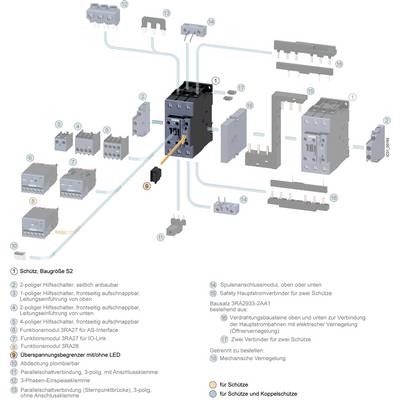

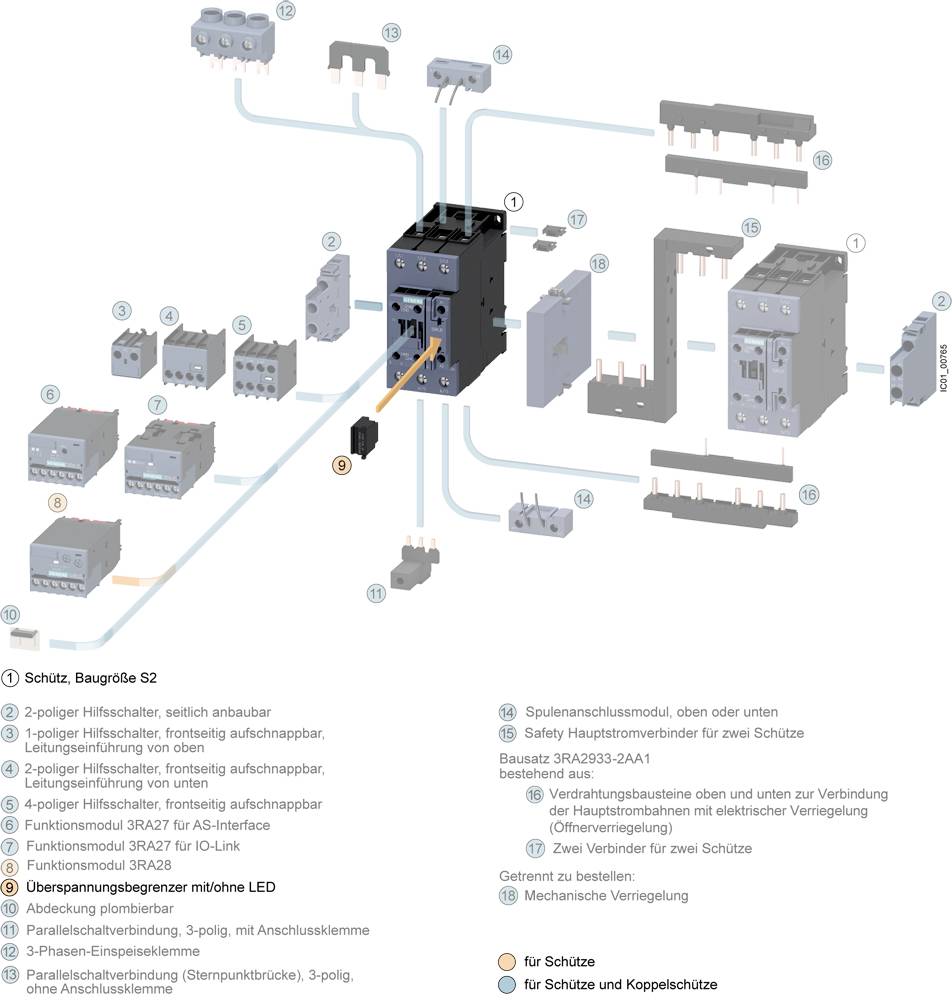

Overvoltage limiter, varistor, AC 127 ... 240V DC 150 ... 250V for contactors size S2, S3 Thanks to the built-in panel already in the contactor, the surge suppressor can be plugged in very easily and without affecting the external dimensions.
Simple, efficient, always up-to-date - the SIRIUS modular system.
