SWG Hox 17900301263 Countersunk screws 3 mm 12 mm Star DIN 18360 Steel zinc plated 50 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

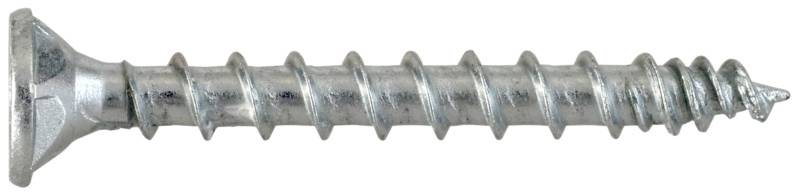

SWG Hox 17900301263 wood screw 3x12mm HX10 inner drive
- Compact length and diameter allow unobtrusive attachment in thin panels and covers.
- The internal HX10 drive ensures controlled torque transmission for motor or manual assembly.
- The flat geometry reduces the risk of material fissions when used in sensitive surfaces.
Technical specifications
- Product type
Countersunk screws
- Drive
Star
- Material
Steel
- Thread size
3 mm
- (Ø)
3 mm
- Length
12 mm
- Head shape
Countersunk

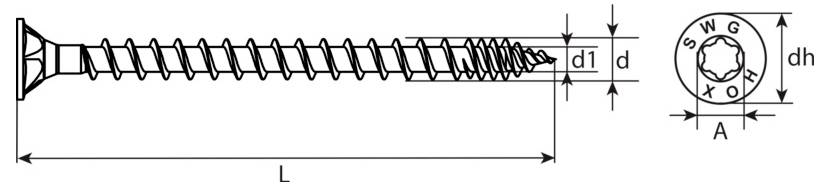

- Dim
(Ø x L) 3 mm x 12 mm
- DIN standard
DIN 18360
- Content
50 pc(s)
- Material properties
zinc plated
Documents & Downloads
Datasheet
Datasheet 3595387 SWG Hox 17900301263 Countersunk screws 3 mm 12 mm Star DIN 18360 Steel zinc plated 50 pc(s)
User & Safety Instructions
User & Safety Instructions 3595387 SWG Hox 17900301263 Countersunk screws 3 mm 12 mm Star DIN 18360 Steel zinc plated 50 pc(s)
Description
This wood screw is used to fasten wood and similar surfaces. The screw is mounted by converting the torque into an axial clamping force using a shaft and thread. The installation takes place by inserting the HX10 internal drive in the suitable screwdriver. This applies a uniform torque as the screw is screwed into the material and the components are tightened. Thanks to its short dimensions it is suitable for flat fastenings and applications with minimum protrusion. The controlled screw turning behavior and the reduction of material tension make it Ideal for precise wood work and smaller repairs in the workshop or on site.
This text is machine translated.
This text is machine translated.
Features
- Nominal diameter 3 mm
- Nominal length 12 mm
- Internal drive: HX10
- Quantity: 50 pieces
- Type 3 x 12
- Manufacturer number: 17900301263
