SWG Hox 17900351263 Countersunk screws 3.5 mm 12 mm Star DIN 18360 Steel zinc plated 50 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

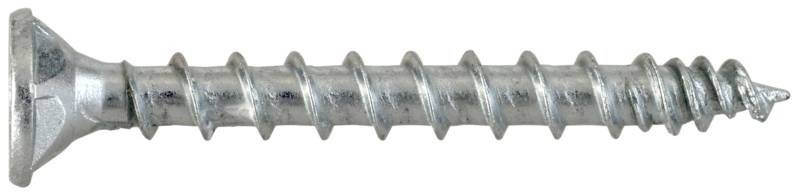

SWG Hox 17900351263 wood screw 3.5 x 12 mm HX10 countersunk head
- The fine shaft ensures precise thread opening and a clean attachment in wood. The short total length allows mounting even in thin cross sections without protrusion. The HX10 internal drive minimizes slipping during mechanical or manual turn-in. Delivery in 50 pc pack for constant availability on construction site
Technical specifications
- Product type
Countersunk screws
- Drive
Star
- Material
Steel
- Thread size
3.5 mm
- (Ø)
3.5 mm
- Length
12 mm
- Head shape
Countersunk

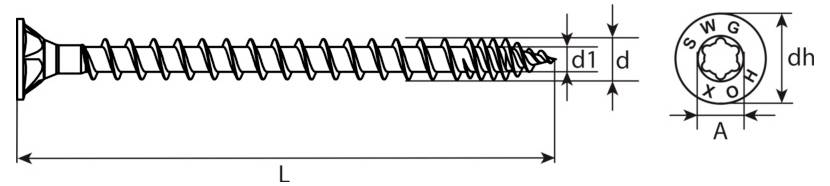

- Dim
(Ø x L) 3.5 mm x 12 mm
- DIN standard
DIN 18360
- Content
50 pc(s)
- Material properties
zinc plated
Documents & Downloads
Datasheet
Datasheet 3595398 SWG Hox 17900351263 Countersunk screws 3.5 mm 12 mm Star DIN 18360 Steel zinc plated 50 pc(s)
User & Safety Instructions
User & Safety Instructions 3595398 SWG Hox 17900351263 Countersunk screws 3.5 mm 12 mm Star DIN 18360 Steel zinc plated 50 pc(s)
Description
This wood screw is designed to be used to attach wooden components when a compact connection is required. The fine thread penetrates deeply into the wood fibers and ensures secure hold with minimal splitting of the wood. The internal HX10 mount allows the use of compatible screwdrivers for controlled torque transmission and reduced overturning. Thanks to its short length, Ideal is suitable for thin panels, strips and joints, where only a low penetration depth is required. The large package is ideal for repeated assembly work and routine maintenance in workshops and on construction sites.
This text is machine translated.
This text is machine translated.
Features
- Nominal diameter 3.5 mm
- Nominal length 12 mm
- Internal drive: HX10
- Contains 50 pieces
