SWG Hox 17900352563 Countersunk screws 3.5 mm 25 mm Star DIN 18360 Steel zinc plated 50 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

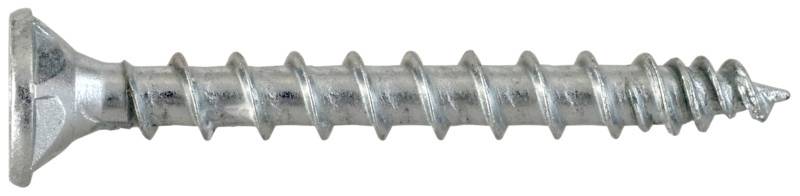

SWG Hox 17900352563 wood screw 3.5 x 25 mm HX10 countersunk head
- The geometry of the fine shaft allows controlled penetration in wood and thus reduces the splitting of the wood when turning in. The internal HX10 drive ensures secure hold with motorized or manual HX10 bits for efficient mounting. Thanks to the recessed head profile, the mounting element closes flush with the work-piece surface to ensure clean surfaces The package size allows several fastening elements to be provided on-site and simplifies supply in the event of recurring assembly work.
Technical specifications
- Product type
Countersunk screws
- Drive
Star
- Material
Steel
- Thread size
3.5 mm
- (Ø)
3.5 mm
- Length
25 mm
- Head shape
Countersunk

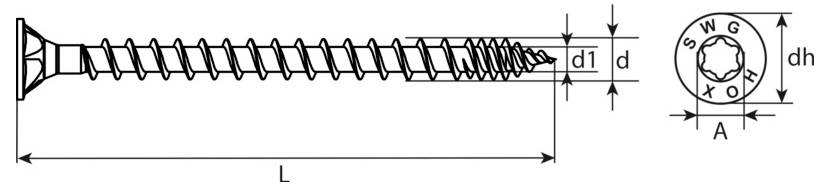

- Dim
(Ø x L) 3.5 mm x 25 mm
- DIN standard
DIN 18360
- Content
50 pc(s)
- Material properties
zinc plated
Documents & Downloads
Datasheet
Datasheet 3595406 SWG Hox 17900352563 Countersunk screws 3.5 mm 25 mm Star DIN 18360 Steel zinc plated 50 pc(s)
User & Safety Instructions
User & Safety Instructions 3595406 SWG Hox 17900352563 Countersunk screws 3.5 mm 25 mm Star DIN 18360 Steel zinc plated 50 pc(s)
Description
This wood screw is a fastening element for connecting or fastening wooden components. It cuts its own thread when screwing it in. The screw is used with an HX10 bit that engages the internal drive to allow safe tightening without excessive overturning. Thanks to its head shape the screw can be screwed under the wooden surface, in order to process or cover it afterwards. Typical applications are recurring carpentry and carpentry work that requires a uniform thread and a clean, flush fit. Package size is suitable for routine on-site work and smaller production series.
This text is machine translated.
This text is machine translated.
Features
- Nominal diameter 3.5 mm
- Nominal length 25 mm
- Internal drive: HX10
- Contains 50 pieces
- Type 3.5 x 25
