SWG Hox 17900502067 Countersunk screws 5 mm 20 mm Star DIN 18360 Steel zinc plated 200 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

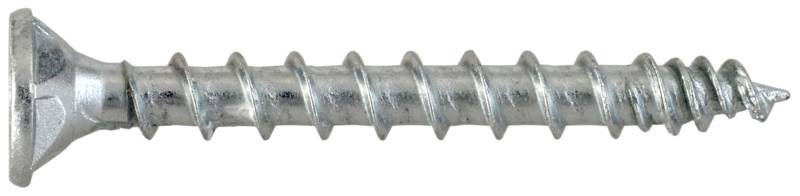

SWG Hox 17900502067 wood screw 5x20mm HX20 inner drive
- The nominal diameter of 5 mm ensures compatibility with standard pilot holes for secure attachment of wood. The nominal length of 20 mm is suitable for flat fixing jobs in light wood construction. The HX20 internal drive reduces slipping out during manual or motor-driven turning-in and ensures even torque transmission. The delivery takes place in a large pack of 200 pieces to simplify procurement during repeated assembly work.
Technical specifications
- Product type
Countersunk screws
- Drive
Star
- Material
Steel
- Thread size
5 mm
- (Ø)
5 mm
- Length
20 mm
- Head shape
Countersunk
- Dim
(Ø x L) 5 mm x 20 mm
- DIN standard
DIN 18360
- Content
200 pc(s)
- Material properties
zinc plated
Documents & Downloads
Datasheet
Datasheet 3595419 SWG Hox 17900502067 Countersunk screws 5 mm 20 mm Star DIN 18360 Steel zinc plated 200 pc(s)
User & Safety Instructions
User & Safety Instructions 3595419 SWG Hox 17900502067 Countersunk screws 5 mm 20 mm Star DIN 18360 Steel zinc plated 200 pc(s)
Description
This wood screw is a short fastening element for screwing into wood or wood material. It works by grasping the material over its shaft and tightening the components with an HX20 Allen key screwdriver when screwed in. The hexagon socket drive shape concentrates the torque on the screw axis, WAS enables a controlled screwing and reduces the slipping during assembly. The screws are supplied in a large package and are suitable for the repeated mounting of furniture, repairs and smaller carpentry work, in which many identical fasteners are required and a fast, uniform screw connection is an advantage.
This text is machine translated.
This text is machine translated.
Features
- Nominal diameter 5 mm
- Nominal length 20 mm
- Drive type: HX20 internal drive
- Contains 200 pieces
