SWG Hox 17900502563 Countersunk screws 5 mm 25 mm Star DIN 18360 Steel zinc plated 50 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

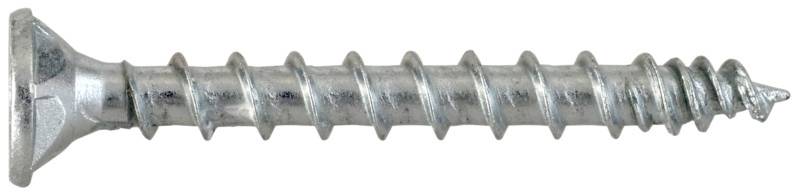

SWG Hox 17900502563 wood screw 5x25mm HX20 internal drive
- The nominal diameter is designed for 5 mm pilot holes and ensures even screw-in. The nominal length is dimensioned in such a way that thin wooden components can be fixed securely and without protruding too much. The internal HX20 drive reduces the output of the cam during motorized mounting and thus ensures a more efficient mounting. Delivery takes place in a pack of 50, Ideal for small series and on-site reordering.
Technical specifications
- Product type
Countersunk screws
- Drive
Star
- Material
Steel
- Thread size
5 mm
- (Ø)
5 mm
- Length
25 mm
- Head shape
Countersunk

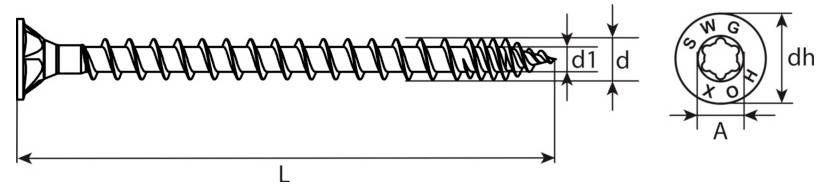

- Dim
(Ø x L) 5 mm x 25 mm
- DIN standard
DIN 18360
- Content
50 pc(s)
- Material properties
zinc plated
Documents & Downloads
Datasheet
Datasheet 3595420 SWG Hox 17900502563 Countersunk screws 5 mm 25 mm Star DIN 18360 Steel zinc plated 50 pc(s)
User & Safety Instructions
User & Safety Instructions 3595420 SWG Hox 17900502563 Countersunk screws 5 mm 25 mm Star DIN 18360 Steel zinc plated 50 pc(s)
Description
This wood screw is a threaded fixing element for connecting wooden components by converting the torque into a traction force. During installation, the screw is screwed in using a hexagonal tool HX20. This tool engages the internal drive and transfers the torque to the shaft so that the thread cuts into the wood and pulls the components together. Thanks to its compact shape, it is suitable for applications where a moderate screw-in depth and controlled overhang are required. The fasteners are delivered in a practical large package and are suitable for recurring installation and maintenance work, which require a uniform mounting characteristics.
This text is machine translated.
This text is machine translated.
Features
- Nominal diameter 5 mm
- Nominal length 25 mm
- Type/Size: 5x25
- Internal drive: HX20
- Contains 50 pieces
