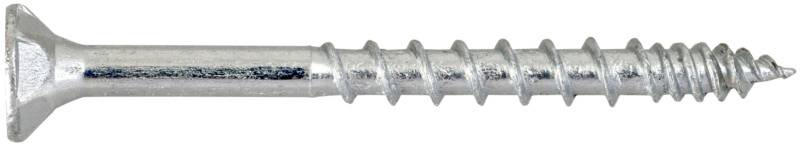

SWG Hox 17901304063 Countersunk screws 3 mm 40 mm Star DIN 18360 Steel zinc plated 50 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
SWG Hox 17901304063 wood screw 3x40mm HX10 head countersunk
- The nominal diameter of 3 mm ensures compatibility with metric pilot holes for wood fixings. The nominal length of 40 mm allows for secure thread intervention for typical carpenters and carpenters. The internal HX10 drive reduces slipping during machine or manual turn-in and ensures controlled torque. Supplied in a pack of 50, Ideal for series assembly and repeated assembly work.
Technical specifications
- Product type
Countersunk screws
- Drive
Star
- Material
Steel
- Thread size
3 mm
- (Ø)
3 mm
- Length
40 mm
- Head shape
Countersunk

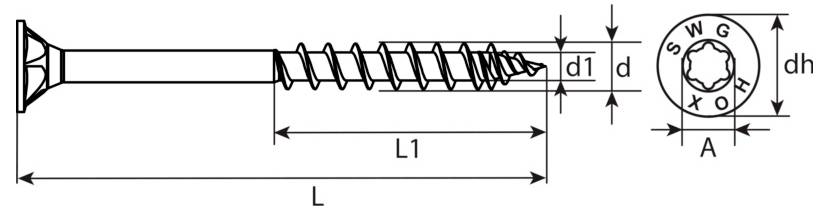

- Dim
(Ø x L) 3 mm x 40 mm
- DIN standard
DIN 18360
- Content
50 pc(s)
- Material properties
zinc plated
Documents & Downloads
Datasheet
Datasheet 3595217 SWG Hox 17901304063 Countersunk screws 3 mm 40 mm Star DIN 18360 Steel zinc plated 50 pc(s)
User & Safety Instructions
User & Safety Instructions 3595217 SWG Hox 17901304063 Countersunk screws 3 mm 40 mm Star DIN 18360 Steel zinc plated 50 pc(s)
Information
Test Summary Report 3595217 SWG Hox 17901304063 Countersunk screws 3 mm 40 mm Star DIN 18360 Steel zinc plated 50 pc(s)
Conformity certificate
Conformity certificate 3595217 SWG Hox 17901304063 Countersunk screws 3 mm 40 mm Star DIN 18360 Steel zinc plated 50 pc(s)
Description
This wood screw is a metric connecting element for joining wood components. It converts the rotary movement via its threaded shaft into an axial tensile force. Installation requires a hexagonal screwdriver (HX10) that fixes the screw for efficient torque transmission and an even fit. The head shape allows flush-fitting into the work surface. The screw is used in wood working and in general carpentry work and ensures a permanent connection of the wooden parts by the penetration of the thread into the wood. The pack size allows several screws or production runs to be used. The dimensions ensure a predictable screwing depth and load distribution if the pre-drilling is correct.
This text is machine translated.
This text is machine translated.
Features
- Diameter 3 mm
- Length: 40 mm
- Drive type: HX10 internal drive
- Quantity: 50 pieces
- Type: 3x40
