SWG Hox 17901407063 Countersunk screws 4 mm 70 mm Star DIN 18360 Steel zinc plated 25 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

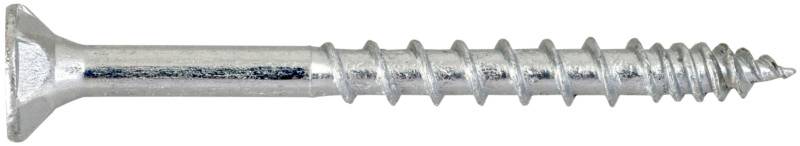

SWG Hox 17901407063 wood screw 4x70 mm HX20 countersunk head
- The thread shaft specially developed for wood applications provides a firm grip during the assembly. The nominal diameter of 4 mm allows for use in pre-drilled pilot holes for controlled insertion. The HX20 internal drive minimizes slipping when using compatible bits. The pack size is suitable for processing multiple operations and reduces the need for frequent re-orders.
Technical specifications
- Product type
Countersunk screws
- Drive
Star
- Material
Steel
- Thread size
4 mm
- (Ø)
4 mm
- Length
70 mm
- Head shape
Countersunk

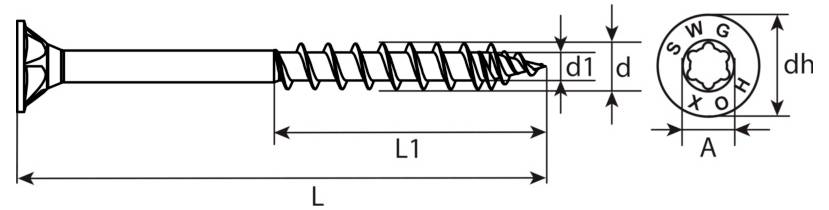

- Dim
(Ø x L) 4 mm x 70 mm
- DIN standard
DIN 18360
- Content
25 pc(s)
- Material properties
zinc plated
Documents & Downloads
Datasheet
Datasheet 3595290 SWG Hox 17901407063 Countersunk screws 4 mm 70 mm Star DIN 18360 Steel zinc plated 25 pc(s)
User & Safety Instructions
User & Safety Instructions 3595290 SWG Hox 17901407063 Countersunk screws 4 mm 70 mm Star DIN 18360 Steel zinc plated 25 pc(s)
Information
Test Summary Report 3595290 SWG Hox 17901407063 Countersunk screws 4 mm 70 mm Star DIN 18360 Steel zinc plated 25 pc(s)
Conformity certificate
Conformity certificate 3595290 SWG Hox 17901407063 Countersunk screws 4 mm 70 mm Star DIN 18360 Steel zinc plated 25 pc(s)
Description
This wood screw is used to fasten wooden components that require a flush connection. The installation takes place by screwing in the HX20 Allen key drive with a suitable bit. The thread shaft is drawn into the wood to create the clamping force between the connected parts. The bolt geometry transfers the axial load along the shaft, while the drive type allows a machine or manual assembly with reduced overturning. The screw is supplied as a multi-piece package and is therefore suitable for Ideal for recurring wood work and for use on construction sites, where uniform screw length and diameter ensure a predictable assembly behavior.
This text is machine translated.
This text is machine translated.
Features
- Nominal diameter 4 mm
- Nominal length 70 mm
- Type/Size Name 4 x 70
- Internal drive: HX20
- Content: 25 pieces
