SWG Hox 17901454015 Countersunk screws 4.5 mm 40 mm Star DIN 18360 Steel zinc plated 400 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

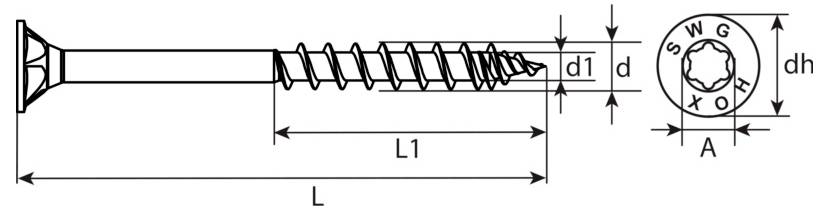

SWG Hox 17901454015 wood screw 4.5 x 40 mm HX20 internal drive
- The nominal diameter of 4.5 mm ensures a secure hold in the wood for load-carrying connections. The nominal length of 40 mm allows sufficient penetration depth for common wood structures. The internal HX20 drive ensures efficient torque transmission during motorized assembly. The delivery takes place in a quantity of 400 pieces, in order to support also larger projects and to minimize refill interruptions.
Technical specifications
- Product type
Countersunk screws
- Drive
Star
- Material
Steel
- Thread size
4.5 mm
- (Ø)
4.5 mm
- Length
40 mm
- Head shape
Countersunk
- Dim
(Ø x L) 4.5 mm x 40 mm
- DIN standard
DIN 18360
- Content
400 pc(s)
- Material properties
zinc plated
Documents & Downloads
Datasheet
Datasheet 3595261 SWG Hox 17901454015 Countersunk screws 4.5 mm 40 mm Star DIN 18360 Steel zinc plated 400 pc(s)
User & Safety Instructions
User & Safety Instructions 3595261 SWG Hox 17901454015 Countersunk screws 4.5 mm 40 mm Star DIN 18360 Steel zinc plated 400 pc(s)
Information
Test Summary Report 3595261 SWG Hox 17901454015 Countersunk screws 4.5 mm 40 mm Star DIN 18360 Steel zinc plated 400 pc(s)
Conformity certificate
Conformity certificate 3595261 SWG Hox 17901454015 Countersunk screws 4.5 mm 40 mm Star DIN 18360 Steel zinc plated 400 pc(s)
Description
This wood screw forms secure thread in wood by converting the torque into axial penetration force. The installation is usually done with a suitable HX20 screwdriver bit, which is located in the internal drive to produce a controlled torque and to prevent slipping. The geometry of the screw converts the applied torque into clamping force between the connected components and is therefore suitable for Ideal for repeated screwing work in wood working and in construction. The large package enables continuous work on medium to large projects and simplifies the storage on the construction site.
This text is machine translated.
This text is machine translated.
Features
- Nominal diameter 4.5 mm
- Nominal length 40 mm
- Internal drive: HX20
- Contains 400 pieces
