SWG Hox 17901455019 Countersunk screws 4.5 mm 50 mm Star DIN 18360 Steel zinc plated 500 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

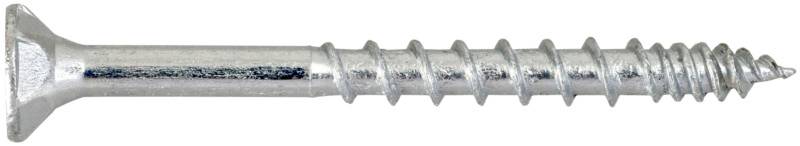

SWG Hox 17901455019 wood screw 4.5 x 50 mm HX20 countersunk head
- The nominal diameter of 4.5 mm ensures a consistent fit for metric pilot holes and a repeat alignment of the connections. The nominal length of 50 mm allows sufficient penetration depth for multi-layered wood construction and secure attachment. The internal HX20 drive reduces over-turning during machine or manual assembly and thus ensures efficient attachment. Delivery in a 500-piece set supports Hohem throughput projects and minimizes reordering interruptions.
Technical specifications
- Product type
Countersunk screws
- Drive
Star
- Material
Steel
- Thread size
4.5 mm
- (Ø)
4.5 mm
- Length
50 mm
- Head shape
Countersunk

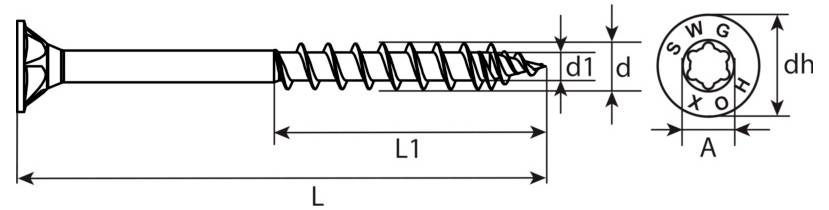

- Dim
(Ø x L) 4.5 mm x 50 mm
- DIN standard
DIN 18360
- Content
500 pc(s)
- Material properties
zinc plated
Documents & Downloads
Datasheet
Datasheet 3595268 SWG Hox 17901455019 Countersunk screws 4.5 mm 50 mm Star DIN 18360 Steel zinc plated 500 pc(s)
User & Safety Instructions
User & Safety Instructions 3595268 SWG Hox 17901455019 Countersunk screws 4.5 mm 50 mm Star DIN 18360 Steel zinc plated 500 pc(s)
Information
Test Summary Report 3595268 SWG Hox 17901455019 Countersunk screws 4.5 mm 50 mm Star DIN 18360 Steel zinc plated 500 pc(s)
Conformity certificate
Conformity certificate 3595268 SWG Hox 17901455019 Countersunk screws 4.5 mm 50 mm Star DIN 18360 Steel zinc plated 500 pc(s)
Description
This wood screw is a connector element for connecting wood components. It converts the torque in traction and clamping force. The screw is driven via an internal HX20 mount that ensures secure hold with compatible bits and uniform torque transmission when turning in. Thanks to its nominal diameter-length combination, the thread grips effectively through different board thicknesses and provides a secure connection of the wooden parts. The product is supplied in a large package and is suitable for recurring assembly work and production lines requiring a constant geometry of the connecting element and compatibility with different drives.
This text is machine translated.
This text is machine translated.
Features
- Nominal diameter 4.5 mm
- Nominal length 50 mm
- Internal drive: HX20
- Contains 500 pieces
