SWG Hox 17901505015 Countersunk screws 5 mm 50 mm Star DIN 18360 Steel zinc plated 250 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

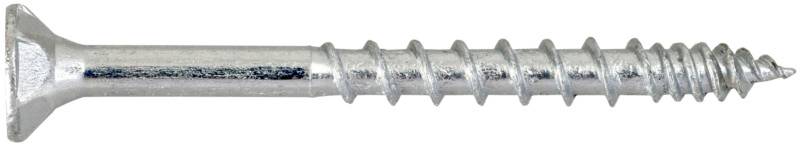

SWG Hox 17901505015 wood screw 5x50mm HX20 countersunk head
- The nominal diameter of 5 mm ensures uniform interference in wooden joints and ensures secure attachment. The nominal length of 50 mm allows sufficient penetration depth in medium-strength wood construction and ensures a strong mechanical support. The HX20 internal drive reduces slipping during machine assembly and thus improves assembly speed and control. The delivery is made in a pack size of 250 for large-scale projects and minimizes re-orders for recurring assembly work.
Technical specifications
- Product type
Countersunk screws
- Drive
Star
- Material
Steel
- Thread size
5 mm
- (Ø)
5 mm
- Length
50 mm
- Head shape
Countersunk
- Dim
(Ø x L) 5 mm x 50 mm
- DIN standard
DIN 18360
- Content
250 pc(s)
- Material properties
zinc plated
Documents & Downloads
Datasheet
Datasheet 3595311 SWG Hox 17901505015 Countersunk screws 5 mm 50 mm Star DIN 18360 Steel zinc plated 250 pc(s)
User & Safety Instructions
User & Safety Instructions 3595311 SWG Hox 17901505015 Countersunk screws 5 mm 50 mm Star DIN 18360 Steel zinc plated 250 pc(s)
Conformity certificate
Conformity certificate 3595311 SWG Hox 17901505015 Countersunk screws 5 mm 50 mm Star DIN 18360 Steel zinc plated 250 pc(s)
Description
This wood screw is a fastening element for connecting wooden components. It converts the torque into an axial clamping force. The HX20 Allen Drive is compatible with matching bits and ensures efficient torque transmission. The head profile allows flush mounting in wooden surfaces. Cordless screwdrivers with controlled torque are usually used for installation to prevent overtightening. The screw geometry penetrates in the wood fibers and forms a mechanical serration, which securely holds the components together under shear and tensile load. The large package is suitable for repeated use on construction sites or in production lines where consistent and reproducible performance is required.
This text is machine translated.
This text is machine translated.
Features
- Diameter: 5 mm
- Length: 50 mm
- HX20 drive (hex socket)
- Package contains 250 pieces
- Type name: 5x50
