SWG Hox 17901507063 Countersunk screws 5 mm 70 mm Star DIN 18360 Steel zinc plated 20 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

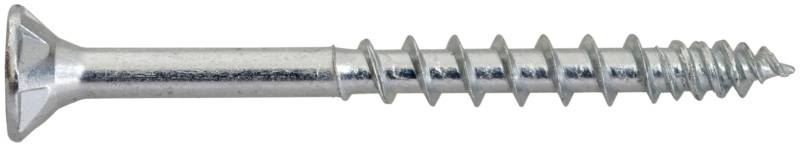

SWG Hox 17901507063 wood screw 5x70 mm HX20 hex socket
- The nominal diameter of 5 mm ensures a secure hold in the wood for load-carrying connections. The length of 70 mm allows thick wooden parts to be penetrated for a secure fixing. The HX20 hexagon socket drive ensures a secure hold and minimizes slipping during assembly. Supplied in 20 pack for series projects and repeated assembly work.

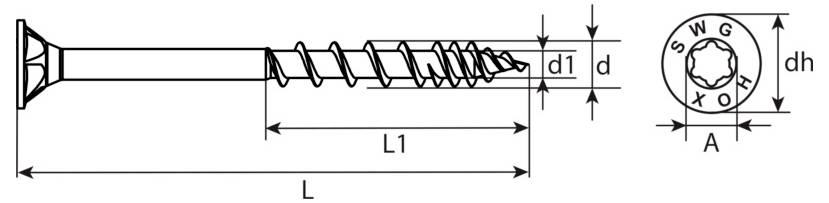

Technical specifications
- Product type
Countersunk screws
- Drive
Star
- Material
Steel
- Thread size
5 mm
- (Ø)
5 mm
- Length
70 mm
- Head shape
Countersunk
- Dim
(Ø x L) 5 mm x 70 mm
- DIN standard
DIN 18360
- Content
20 pc(s)
- Material properties
zinc plated
Documents & Downloads
Datasheet
Datasheet 3595323 SWG Hox 17901507063 Countersunk screws 5 mm 70 mm Star DIN 18360 Steel zinc plated 20 pc(s)
User & Safety Instructions
User & Safety Instructions 3595323 SWG Hox 17901507063 Countersunk screws 5 mm 70 mm Star DIN 18360 Steel zinc plated 20 pc(s)
Information
Test Summary Report 3595323 SWG Hox 17901507063 Countersunk screws 5 mm 70 mm Star DIN 18360 Steel zinc plated 20 pc(s)
Conformity certificate
Conformity certificate 3595323 SWG Hox 17901507063 Countersunk screws 5 mm 70 mm Star DIN 18360 Steel zinc plated 20 pc(s)
Description
This wood screw is a mechanical connecting element for joining wood components. It converts the torque into an axial draft resistor. The installation is carried out with a suitable Allen key which engages in the HX20 mount, allowing controlled turning in and reducing the risk of spinning. The bolt geometry allows progressive thread cutting and anchoring in the wood fibers. This makes it suitable for construction and general carpentry work, where a deeper penetration depth is required. The screws are supplied in a ready-to-use packaging and are intended for repeated assembly work in the workshop or on the construction site.
This text is machine translated.
This text is machine translated.
Features
- Nominal diameter 5 mm
- Nominal length 70 mm
- Type name: 5x70
- Internal drive: HX20
- Content: 20 pieces
