SWG Hox 17901508015 Countersunk screws 5 mm 80 mm Star DIN 18360 Steel zinc plated 200 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

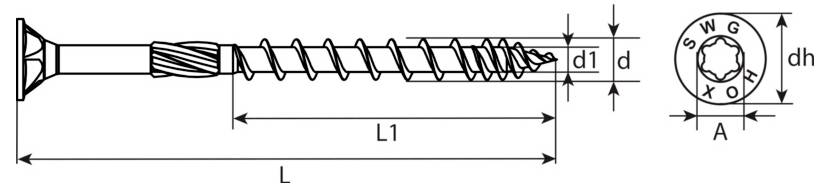

SWG Hox 17901508015 wood screw 5x80mm HX20 countersunk head
- Cylindrical shaft and thread profile ensure firm grip in the wood and stable joints. The HX20 internal drive minimizes slipping during mechanical assembly and ensures even torque transmission. The recessed head allows a flush surface for a clean mounting. The pack size is suitable for large-scale projects and reduces interruptions in frequent screwing tasks.
Technical specifications
- Product type
Countersunk screws
- Drive
Star
- Material
Steel
- Thread size
5 mm
- (Ø)
5 mm
- Length
80 mm
- Head shape
Countersunk
- Dim
(Ø x L) 5 mm x 80 mm
- DIN standard
DIN 18360
- Content
200 pc(s)
- Material properties
zinc plated
Documents & Downloads
Datasheet
Datasheet 3595326 SWG Hox 17901508015 Countersunk screws 5 mm 80 mm Star DIN 18360 Steel zinc plated 200 pc(s)
User & Safety Instructions
User & Safety Instructions 3595326 SWG Hox 17901508015 Countersunk screws 5 mm 80 mm Star DIN 18360 Steel zinc plated 200 pc(s)
Information
Test Summary Report 3595326 SWG Hox 17901508015 Countersunk screws 5 mm 80 mm Star DIN 18360 Steel zinc plated 200 pc(s)
Conformity certificate
Conformity certificate 3595326 SWG Hox 17901508015 Countersunk screws 5 mm 80 mm Star DIN 18360 Steel zinc plated 200 pc(s)
Description
This wood screw is a fixing element for wood, which is screwed into prepared or pre-drilled wood using an HX20 hexagonal drill. The torque is converted into an axial clamping force in order to firmly link the components together. The countersunk head lies below the surface and thus ensures a clean appearance, while the thread shaft digs into the wood to prevent it from unscrewing under load. It is usually installed using a cordless screwdriver and controlled torque settings to prevent overturning. The fasteners are supplied in large quantities and are suitable for repeated assembly or construction work that requires uniform fastening and a flat finish.
This text is machine translated.
This text is machine translated.
Features
- Nominal diameter 5 mm
- Nominal length 80 mm
- Internal drive: HX20
- Contains 200 pieces
