SWG Hox 17901605063 Countersunk screws 6 mm 50 mm Star DIN 18360 Steel zinc plated 20 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

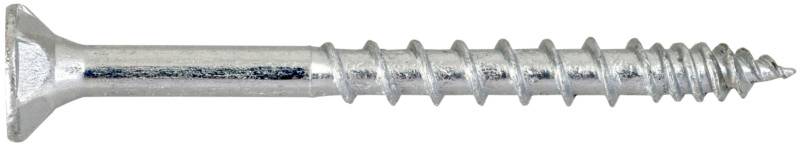

SWG Hox 17901605063 wood screw 6x50 HX30 internal drive
- The slim shaft diameter enables an easy and reliable screw in wood. The 50 mm long screw ensures secure penetration into medium-strong floorboards. The internal HX30 drive reduces spinning when using engine-driven or manual screws, allowing for faster assembly. The screw is delivered in 20-pack, in order to simplify the storage of smaller projects.
Technical specifications
- Product type
Countersunk screws
- Drive
Star
- Material
Steel
- Thread size
6 mm
- (Ø)
6 mm
- Length
50 mm
- Head shape
Countersunk
- Dim
(Ø x L) 6 mm x 50 mm
- DIN standard
DIN 18360
- Content
20 pc(s)
- Material properties
zinc plated
Documents & Downloads
Datasheet
Datasheet 3595369 SWG Hox 17901605063 Countersunk screws 6 mm 50 mm Star DIN 18360 Steel zinc plated 20 pc(s)
User & Safety Instructions
User & Safety Instructions 3595369 SWG Hox 17901605063 Countersunk screws 6 mm 50 mm Star DIN 18360 Steel zinc plated 20 pc(s)
Conformity certificate
Conformity certificate 3595369 SWG Hox 17901605063 Countersunk screws 6 mm 50 mm Star DIN 18360 Steel zinc plated 20 pc(s)
Description
This wood screw is used for fixing wood components. It cuts into the wood when screwed in and converts the torque of the internal drive into an axial clamping force. The HX30 interior frame is compatible with matching hexagonal bits, allowing uniform torque transmission and efficient motor-driven mounting while minimizing slip. The bolt geometry promotes progressive thread engagement, so that the bolt pulls the workpieces together when they are screwed in. The bolt is supplied in a multi-pack and is suitable for routine carpentry work and general woodworking tasks requiring repeatable and secure connections.
This text is machine translated.
This text is machine translated.
Features
- Nominal diameter 6 mm
- Nominal length 50 mm
- Type/Size name: 6x50
- Internal drive: HX30
- Content: 20 pieces
