Sygonix IP video door intercom Wi-Fi Outdoor panel White

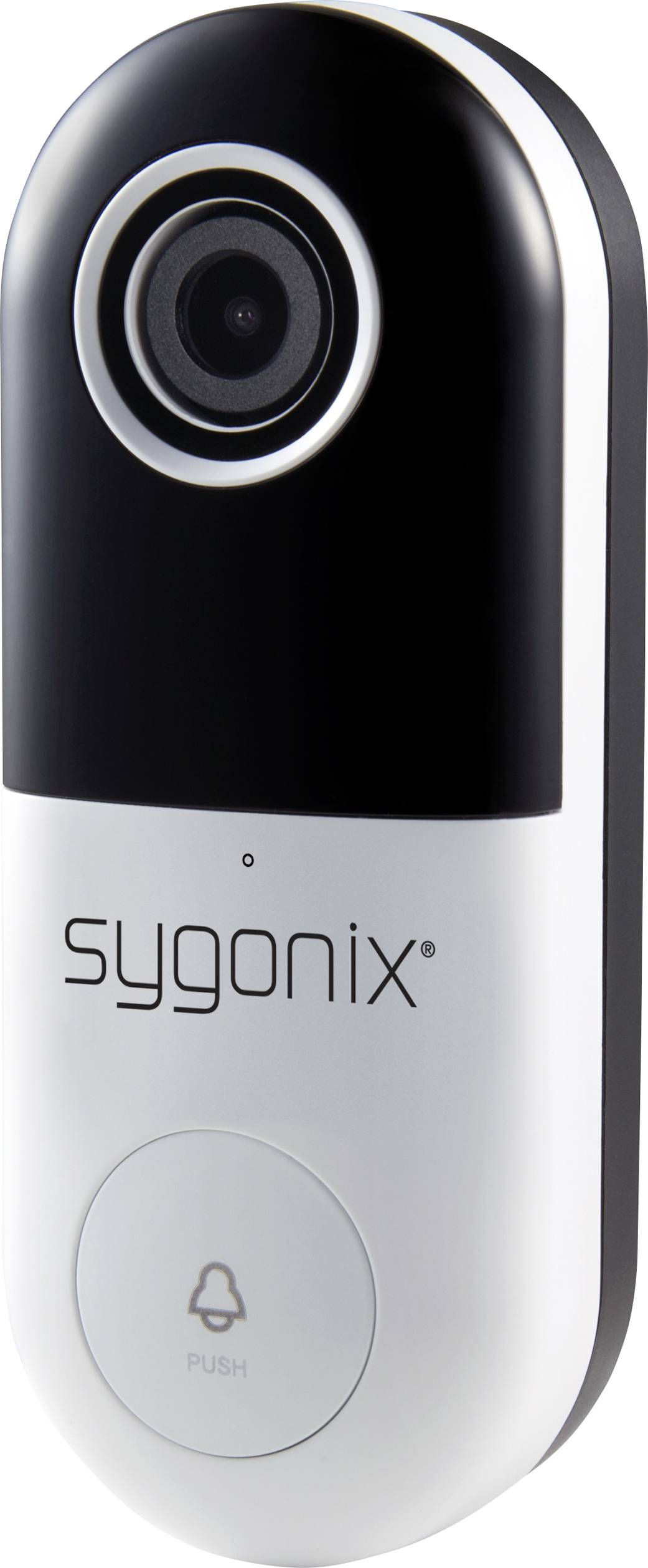

Black and white video doorbell with 'sygonix' printed on it, underneath a button with a bell symbol and the word 'PUSH'.
A black and white Sygonix video doorbell with camera and doorbell button.
Rear view of a black, oval mounting bracket with a removable cover, shown in three perspectives: rear side, mounting bracket, and front side.
A black and white rectangular device shown from the side. It looks modern and could be a technical device.
A small, white electrical device with ventilation holes on the upper half and connectors on the underside.
Video Doorbell Set with Accessories: Camera Unit, Power Adapter, Two Mounting Plates, Wall Plugs, Screws and an Allen Key.
A hand is pressing a doorbell with a camera, which is mounted on a brick wall next to a black door.
A woman is using a smartphone app to control the video doorbell at her front door. The app displays the live video feed from the camera.
1/8
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 23.99 / piece)
€ 23.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns
Pre-contractual information under the EU Data Act

Highlights & Details

Sygonix SY-DB-400 doorbell with camera Wi-Fi

  • Real-time video recording, video playback, screenshot
  • Live chat through the app
  • Notification on the mobile phone or tablet when PIR sensor is triggered

Our service for you

  • 'Powered by tuya' logo on a black background; indicates support for Tuya technology.

Technical specifications

Product type

IP video door intercom

Component

Outdoor panel

Units

1

Transfer type

Wi-Fi

Frequency

2.4 GHz

Leads

2

Mounting type (outdoor)

Surface-mount

Material (external)

Plastic

Factory colour

White

Resolution

1080 p

Power supply (LOV)

via PSU

Max. viewing angle hor.

100°

Vertical viewing angle

55°

Max. bell volume

101dB

Width

45 mm

Height

115 mm

Depth

41 mm

Tuya

Plastic free packaging

Plastic-free packaging

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2226161 Sygonix IP video door intercom Wi-Fi Outdoor panel White

Conformity certificate

Conformity certificate 2226161 Sygonix IP video door intercom Wi-Fi Outdoor panel White

Warranty Terms

Warranty Terms 2226161 Sygonix IP video door intercom Wi-Fi Outdoor panel White

Description

The Sygonix SY-DB-400 doorbell with camera connects with your mobile phone or tablet via a simple app. You can use real-time video recording, playback, and screenshot in the app. The app will send you push notifications when the PIR motion sensor is triggered. This doorbell lets you for example chat with the delivery person from zour mobile phone, and you no longer need to worry about missing parcels and deliveries.

Features

  • Resolution: 1920*1080@25fps
  • 1/3" CMOS, 2 Mega pixel
  • Sensor type: 2063 and lens focal length 3.2 mm
  • Max picture size: 1920 × 1080
  • Triggering: Support button triggering
  • Night vision distance:10 m
  • Motion detection distance: 6 m
  • View angle: Horizontal 100° & vertical 55°
  • Micro SD card capacity: max 128 G
  • 2-way audio, with microphone
  • Wi-Fi standard: 2.4 G 802.11 b/g/n
  • Power: 12~24 V AC
  • IP54
  • App: Smart Life - Smart Living

Scope of delivery

  • 1x Doorbell
  • 1x Adapter
  • 1x Bracket
  • 1x Angled wall bracket
  • 3x Screws and dowels for wall mounting
  • 2x Screws for bracket
  • 1x Torx screw
  • 1x 3M sticker
  • 1x Pin
  • 1x L-shape Torx screwdriver
  • 1x Manual
