Name: T.I.P. - Technische Industrie Produkte 30081 AJ 3 Plus 50/55 (23m H07 RN-F) Well pump 3000 l/h 55 m
Brand: T.I.P. - Technische Industrie Produkte
SKU: 2368848

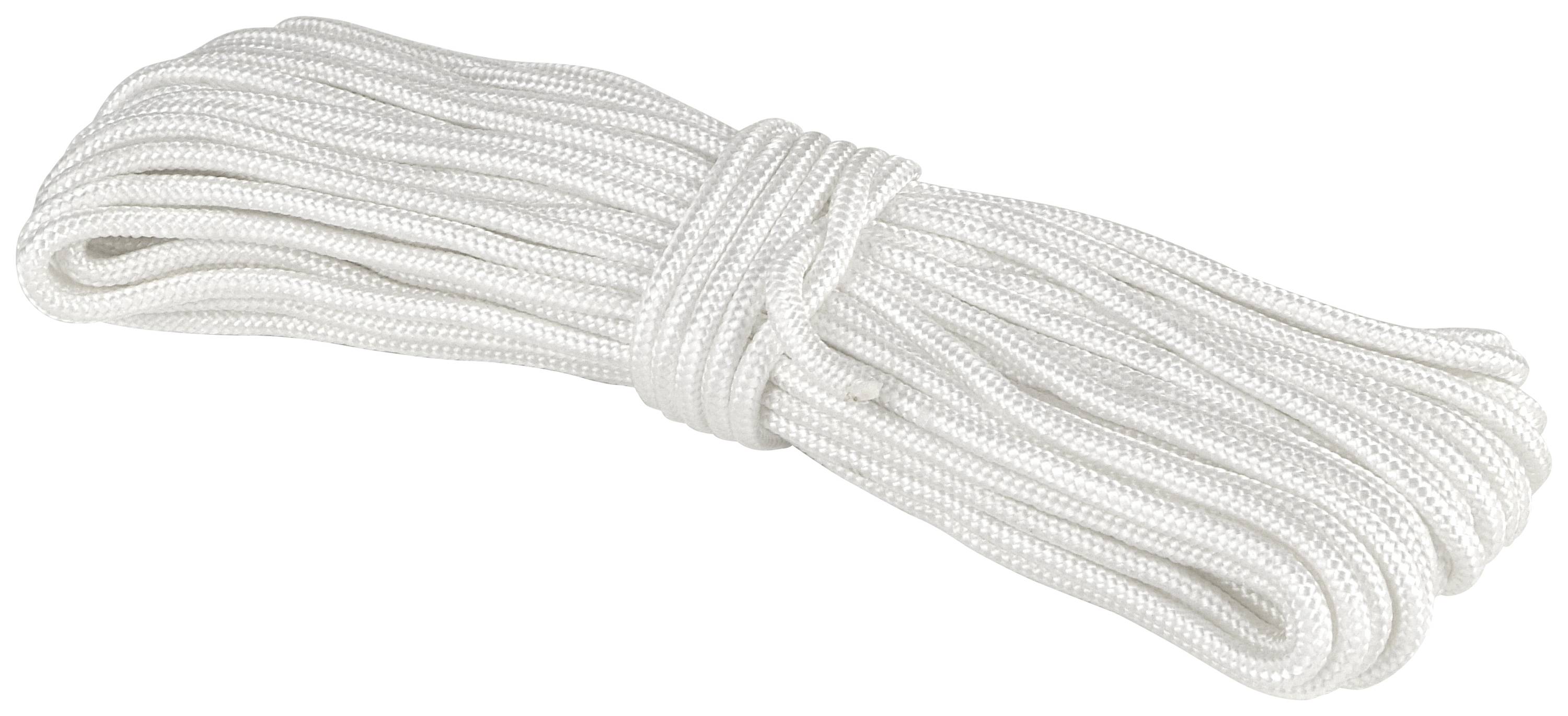

A white rope, neatly coiled and ready for use during outdoor activities or around the home.

A silver, cylindrical submersible pump with long black cables. It has a thread at one end and is lying next to a white rope.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

AJ 3 Plus 50/55, stainless steel (23m H07 RN-F)

Max. flow 3,000 l/h
Motor 800 Watt
Suitable for wells as small as 80 mm in diameter

Technical specifications

Flow rate and delivery height:
50.0 m – 850 l/h.
40.0 m – 1600 l/h.
30.0 m – 2.100 l/h.
20.0 m – 2400 l/h
10.0 m – 2,700 l/h
Feed rate 50 l/min
Pressure max. 5.5 bar
Pump output 1" female thread
Max. Immersion depth 20 m.
Max. Number of beregner: 3

Product type: Well pump

Max. delivery head: 55 m

Max. feed rate: 3000 l/h

Max. discharge pressure: 5.5 bar

Operating voltage: 230 V

Pressure connection: 30.3 mm (1") IT

Max. size of solids: 1 mm

Immersion depth: 20 m

Max. cable length: 23 m

Length: 190 mm

Width: 170 mm

Height: 1020 mm

Dim: (L x W x H) 190 x 170 x 1020 mm

Weight: 12 kg

Documents & Downloads

Datasheet

Datasheet 2368848 T.I.P. - Technische Industrie Produkte 30081 AJ 3 Plus 50/55 (23m H07 RN-F) Well pump 3000 l/h 55 m

User & Safety Instructions

User & Safety Instructions 2368848 T.I.P. - Technische Industrie Produkte 30081 AJ 3 Plus 50/55 (23m H07 RN-F) Well pump 3000 l/h 55 m

Warranty Terms

Warranty Terms 2368848 T.I.P. - Technische Industrie Produkte 30081 AJ 3 Plus 50/55 (23m H07 RN-F) Well pump 3000 l/h 55 m

Description

The powerful model of the AJ 3 Plus series is characterized by its particularly large delivery height. The maintenance-free capacitor motor with thermal overload protection is water-cooled and suitable for continuous operation. Sandproof up to 50 g/m³ water. The small outer diameter of only 7.4 cm enables use in narrow well wells starting from a Ø of 8 cm. For pumping water from great depth and hohem.
