Name: T.I.P. - Technische Industrie Produkte 30137 SubGarden 6000 AUT Clean water submersible pump 6000 l/h 43 m
Brand: T.I.P. - Technische Industrie Produkte
SKU: 2793635

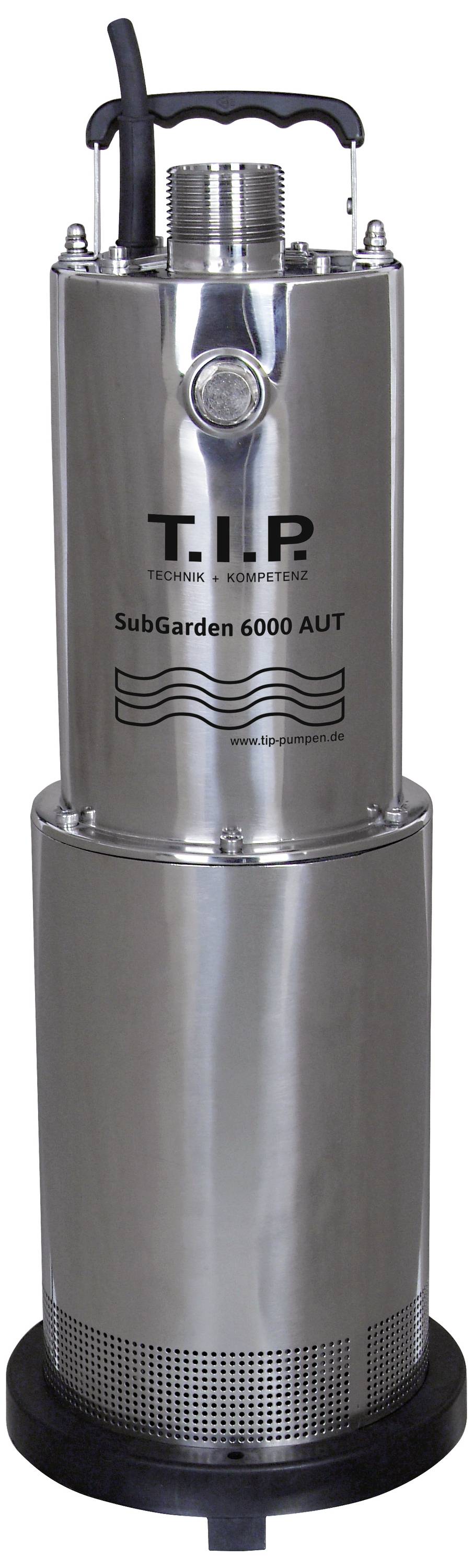

A silver submersible pump with the inscription 'T.I.P. SubGarden 6000 AUT', suitable for use in gardens or wells.

'Auto Stop' function for taps with automatic switching on and off and integrated dry-running protection.

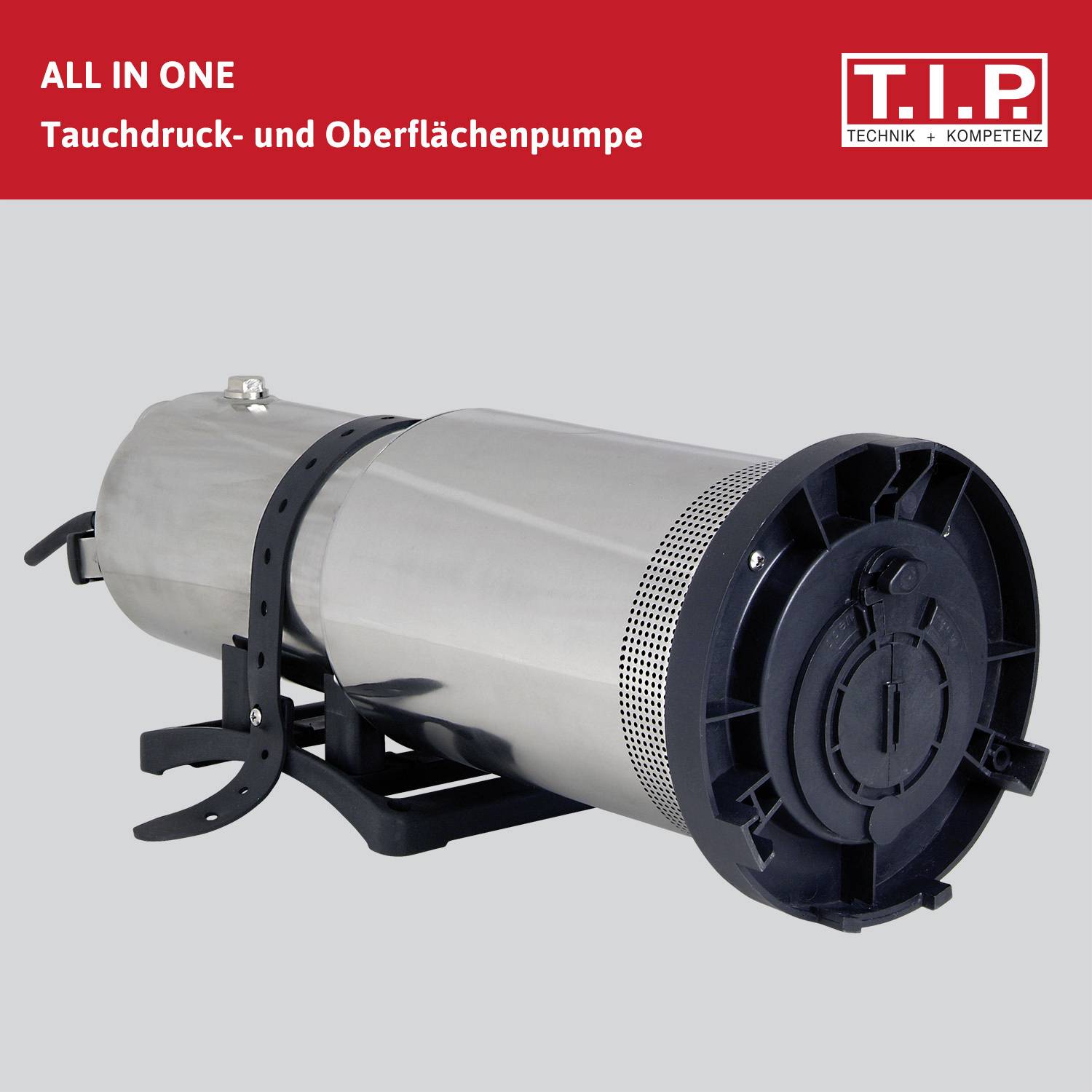

'Submersible pressure and surface pump made of stainless steel with mountings, suitable for diverse applications, shown against a grey background.'

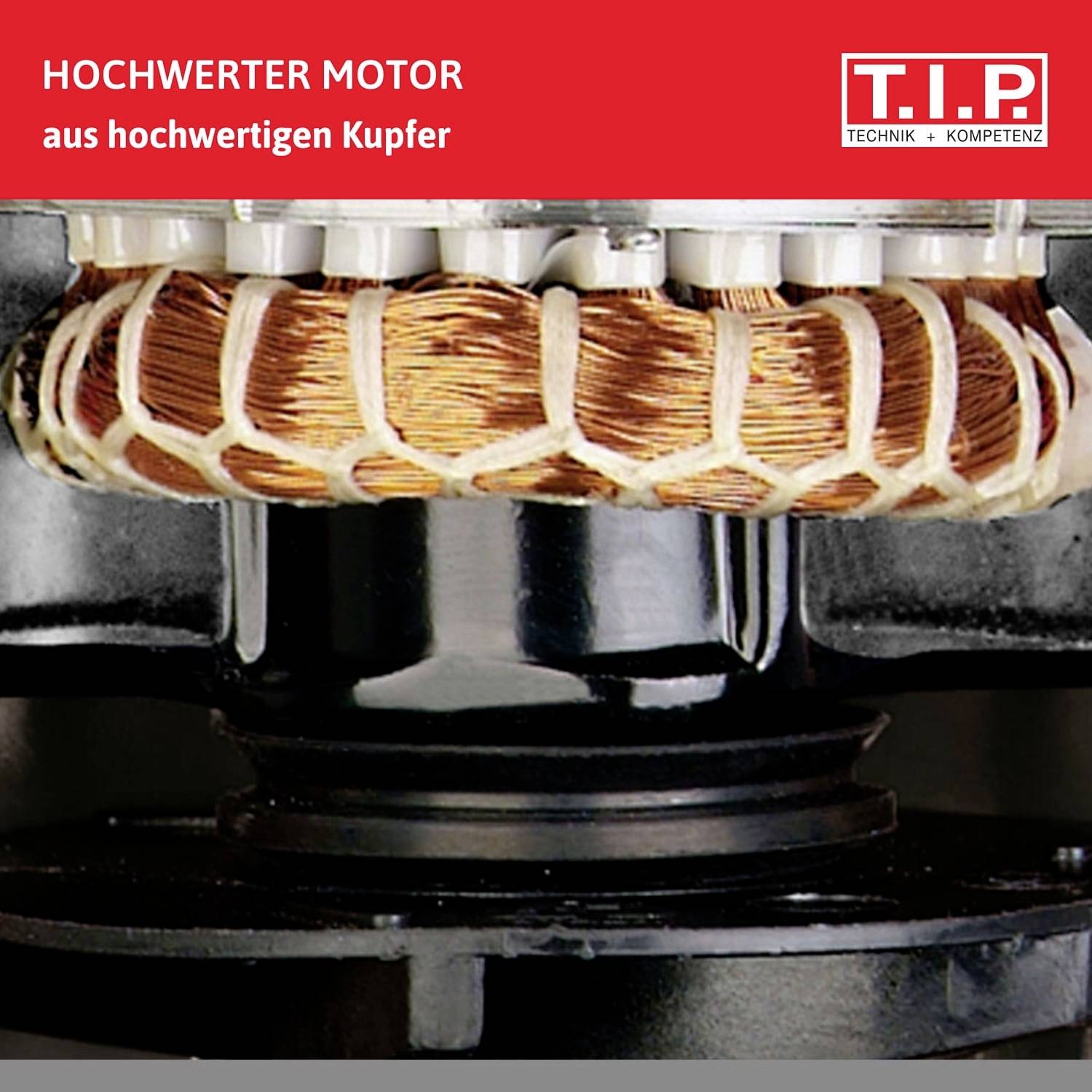

High-quality electric motor with copper windings, promoted for its quality and performance. Text: 'HIGH-QUALITY MOTOR made from premium copper'.

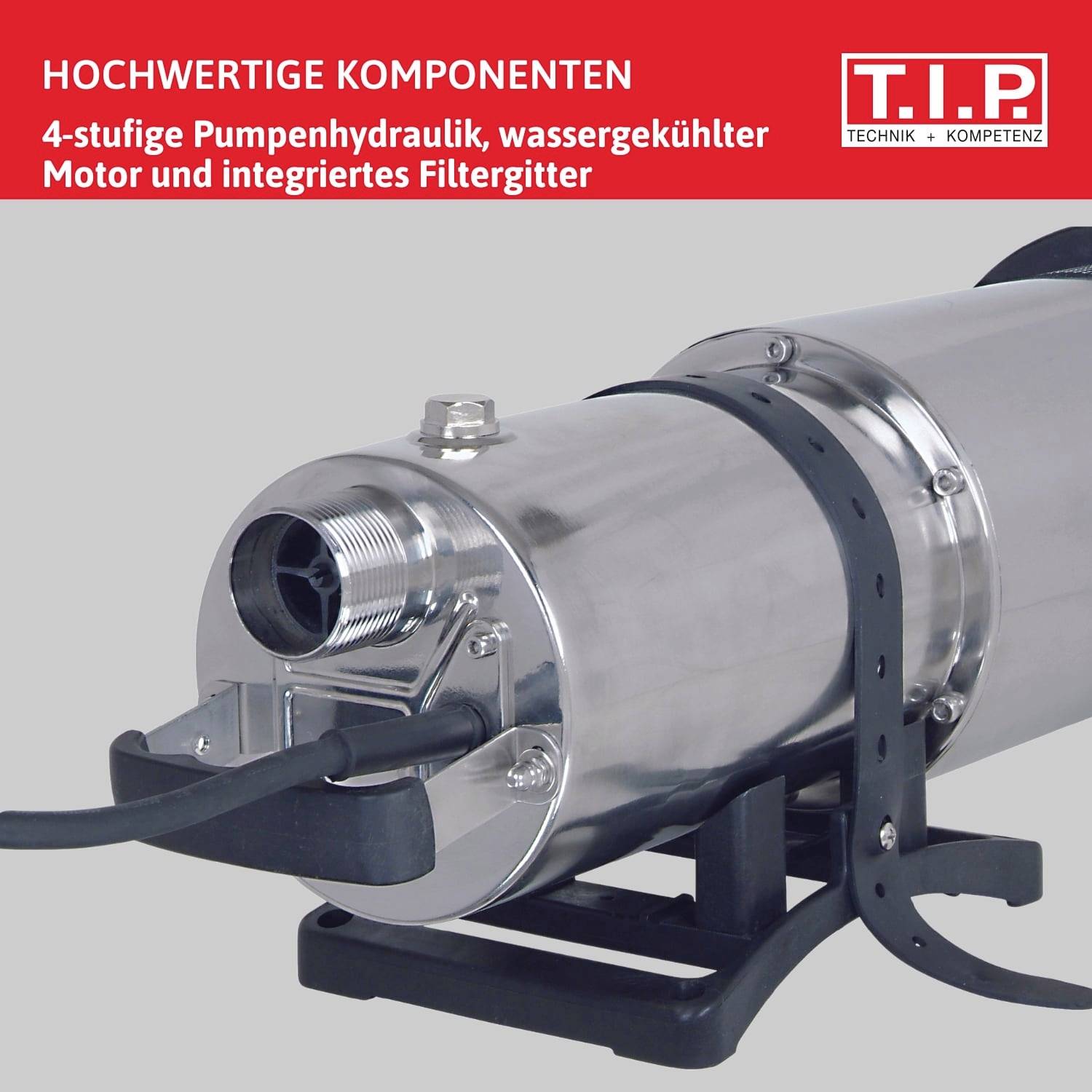

High-quality Pump Components: 4-Stage Pump Hydraulics, Water-Cooled Motor and High-Performance Filter

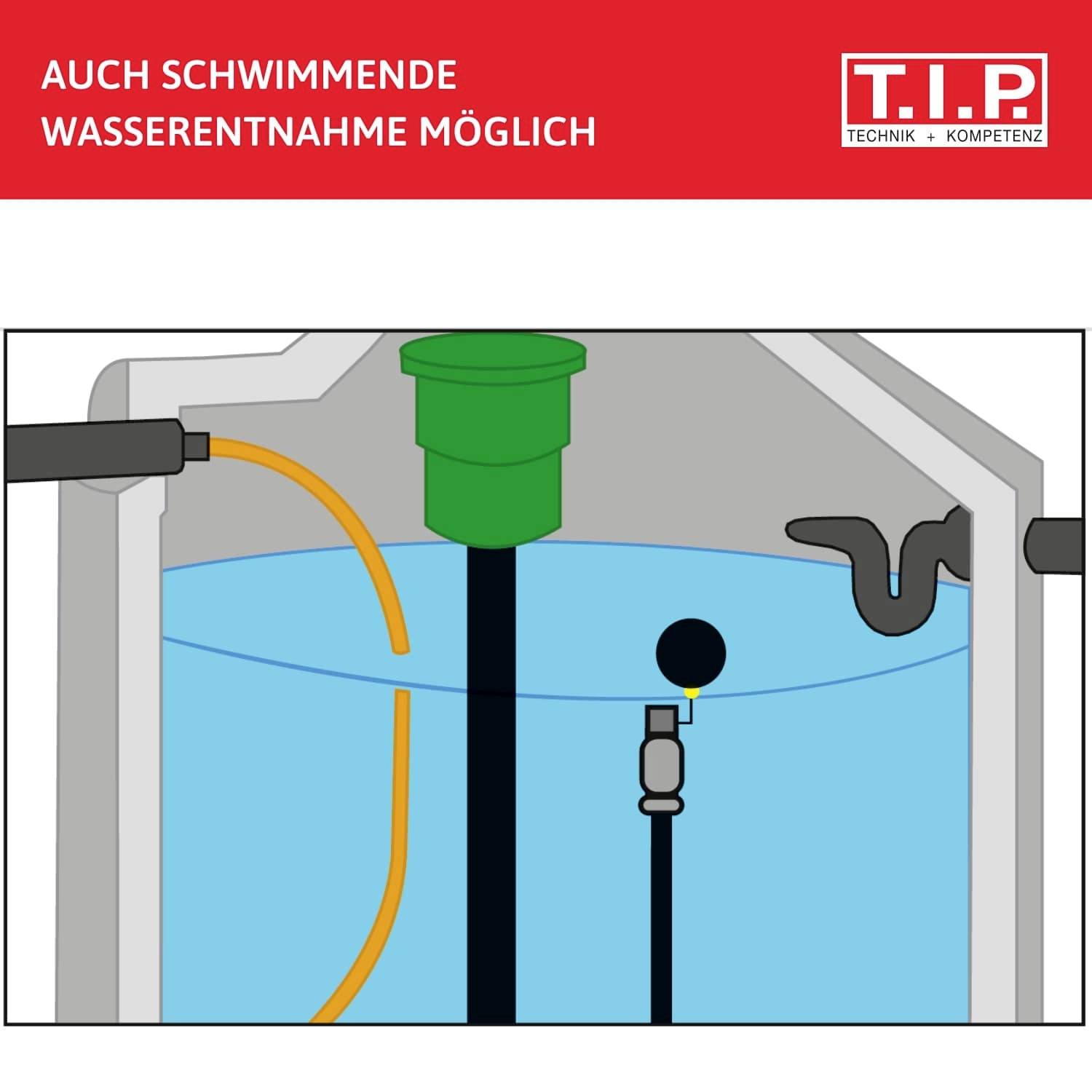

Diagram of a water tank installation with float valve and pump. Text at the top: 'Water extraction while floating also possible'.

1/9

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

T.I.P. Pressure pump SubGarden 6000 AUT 6,000 l/h 43m

Motor 1200 wattMax. delivery height 43 mPressure range max. 4.3 barMax. flow 6,000 l/h

Technical specifications

Product type: Clean water submersible pump

Max. delivery head: 43 m

Max. feed rate: 6000 l/h

Max. discharge pressure: 4.3 bar

Operating voltage: 230 V

Power consumption (P1): 1200 W

Pressure connection: 41.91 mm (1 1/4") OT

Connection: Delivery connection 47.80 mm (1 1/2")

Max. size of solids: 1 mm

Immersion depth: 12 m

Max. cable length: 15 m

Switch-off pressure: 1.6 bar

Length: 530 mm

(Ø): 185 mm

Dim: (Ø x L) 185 mm x 530 mm

Weight: 11.6 kg

: IPX8

Documents & Downloads

Datasheet

Datasheet 2793635 T.I.P. - Technische Industrie Produkte 30137 SubGarden 6000 AUT Clean water submersible pump 6000 l/h 43 m

User & Safety Instructions

User & Safety Instructions 2793635 T.I.P. - Technische Industrie Produkte 30137 SubGarden 6000 AUT Clean water submersible pump 6000 l/h 43 m

Warranty Terms

Warranty Terms 2793635 T.I.P. - Technische Industrie Produkte 30137 SubGarden 6000 AUT Clean water submersible pump 6000 l/h 43 m

Description

The innovative pressure pump with integrated automatic mechanism is an absolute new product on the market. With this product, you purchase a 2 in 1 pump for automated clear water transport both in water and outside the water. Use the pump as a surface pump for example to remove water from a nearby natural water body. Or as submersion pressure pump, e.g. by Empty your cistern or for automatic watering of your garden. This means that the modification takes place quickly and without tools.

This text is machine translated.

Features

Pump casing: Stainless steelThis special development combines submersion pressure and surface pump in one deviceDry installation via suction unit is possibleWet installation with a floating suction in cisterns and wells possibleIdeal for fully automatic watering through the AUTO ON/OFF functionIncluding dry-running protection and an integrated filter grill on the suction sideForced engine cooling for shallow water operation

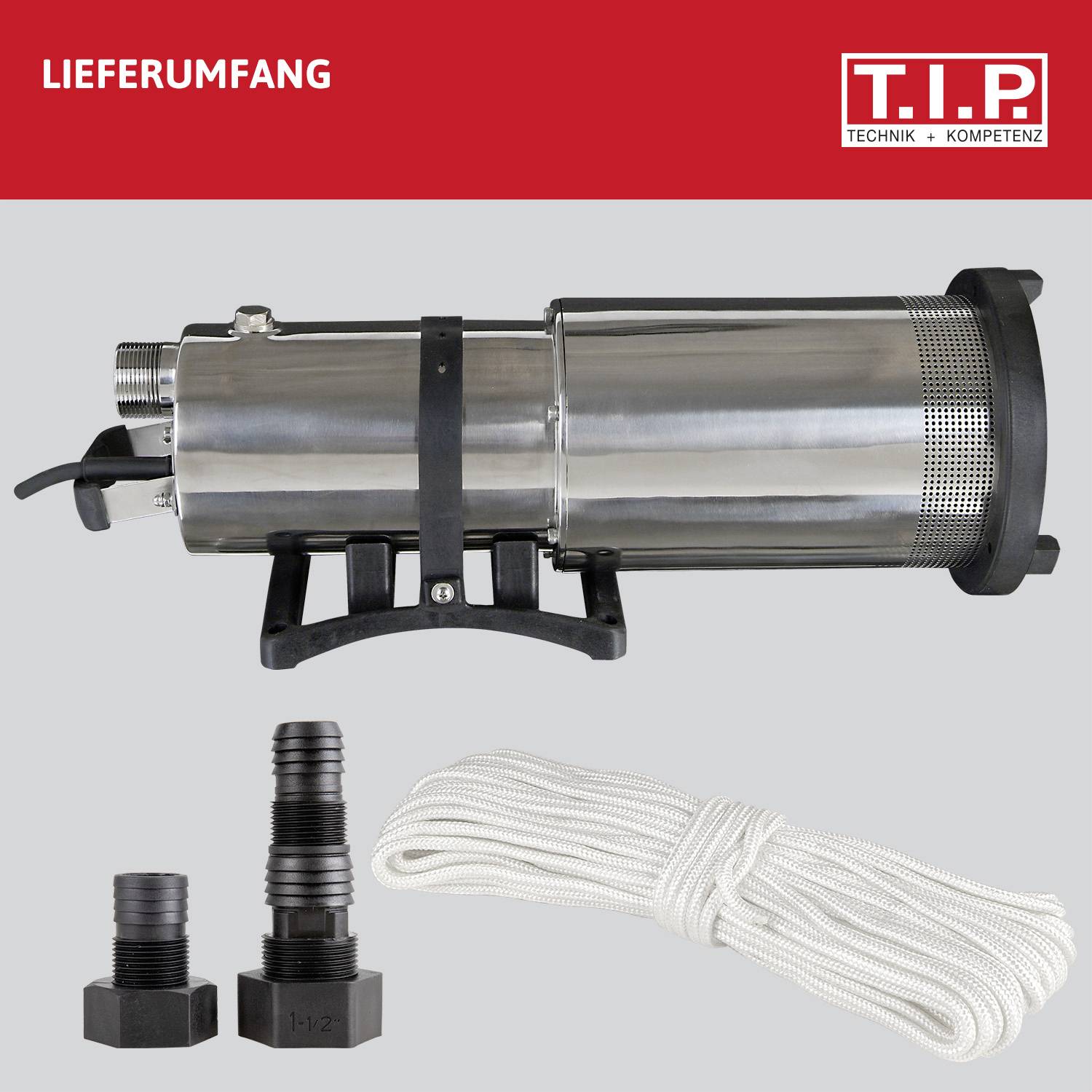

Scope of delivery

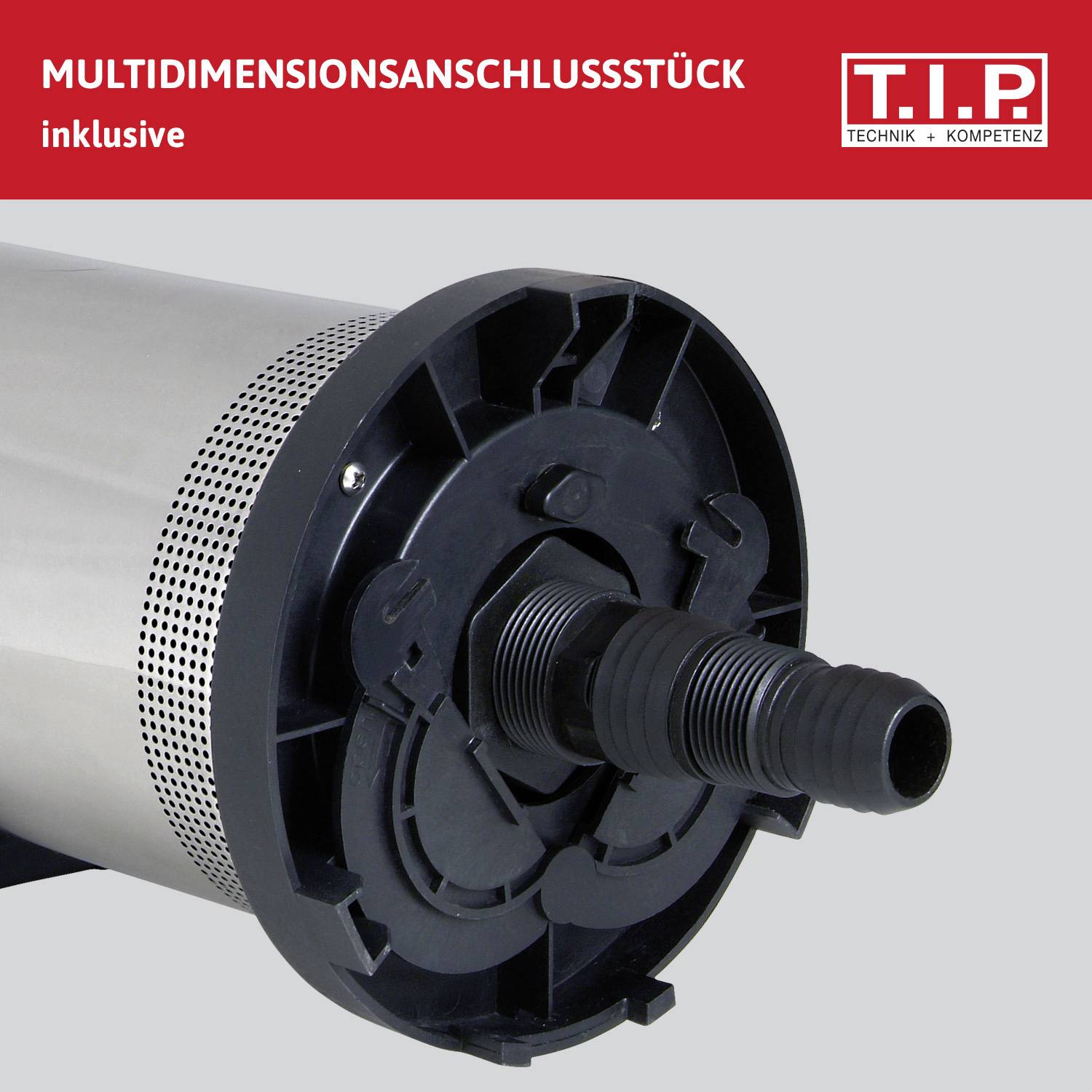

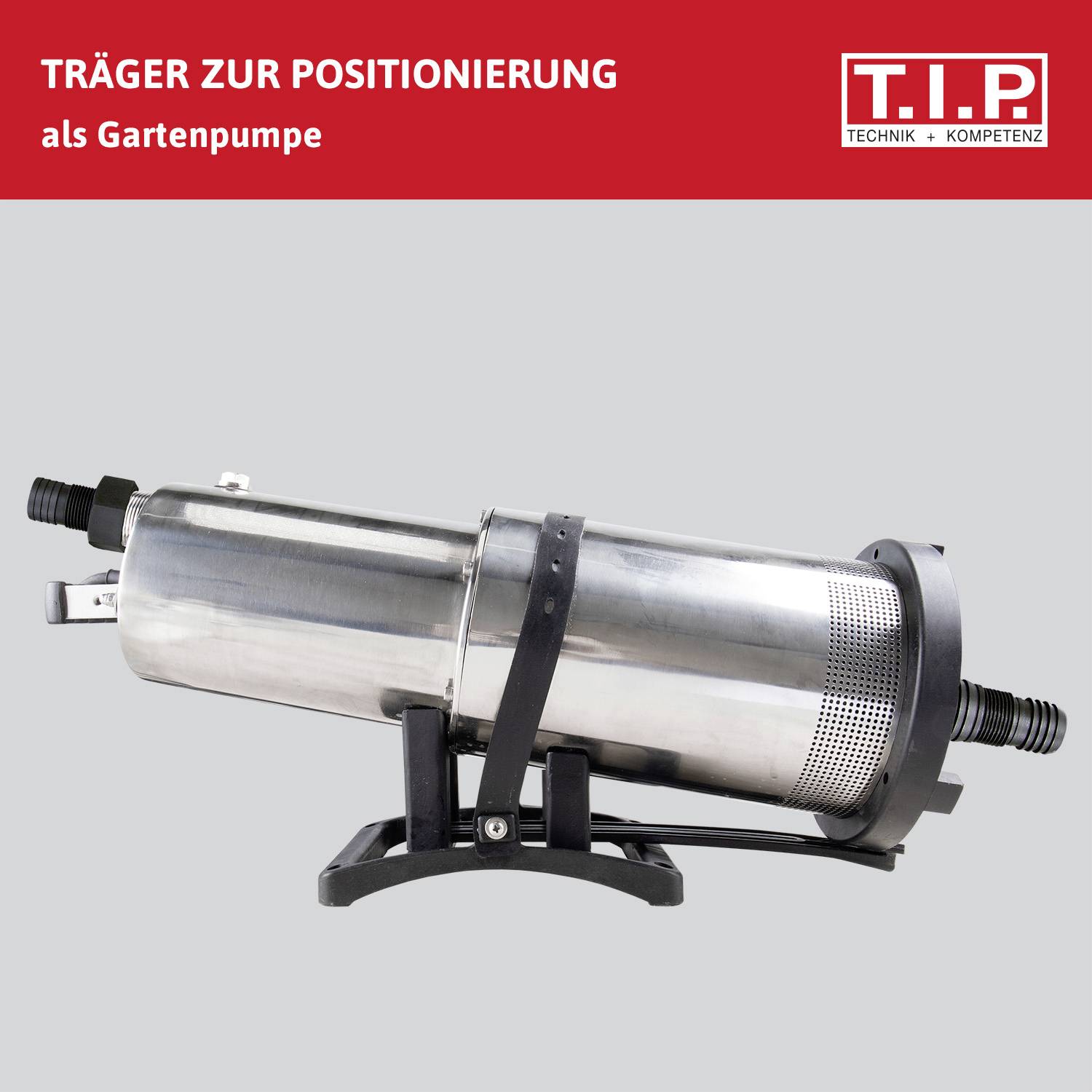

Inclusive two fittingsA pump carrierA drain cable
