Name: T.I.P. - Technische Industrie Produkte 30275 EXTREMA 700/16-3 IX Effluent sump pump 42000 l/h 16 m
Brand: T.I.P. - Technische Industrie Produkte
SKU: 2368852

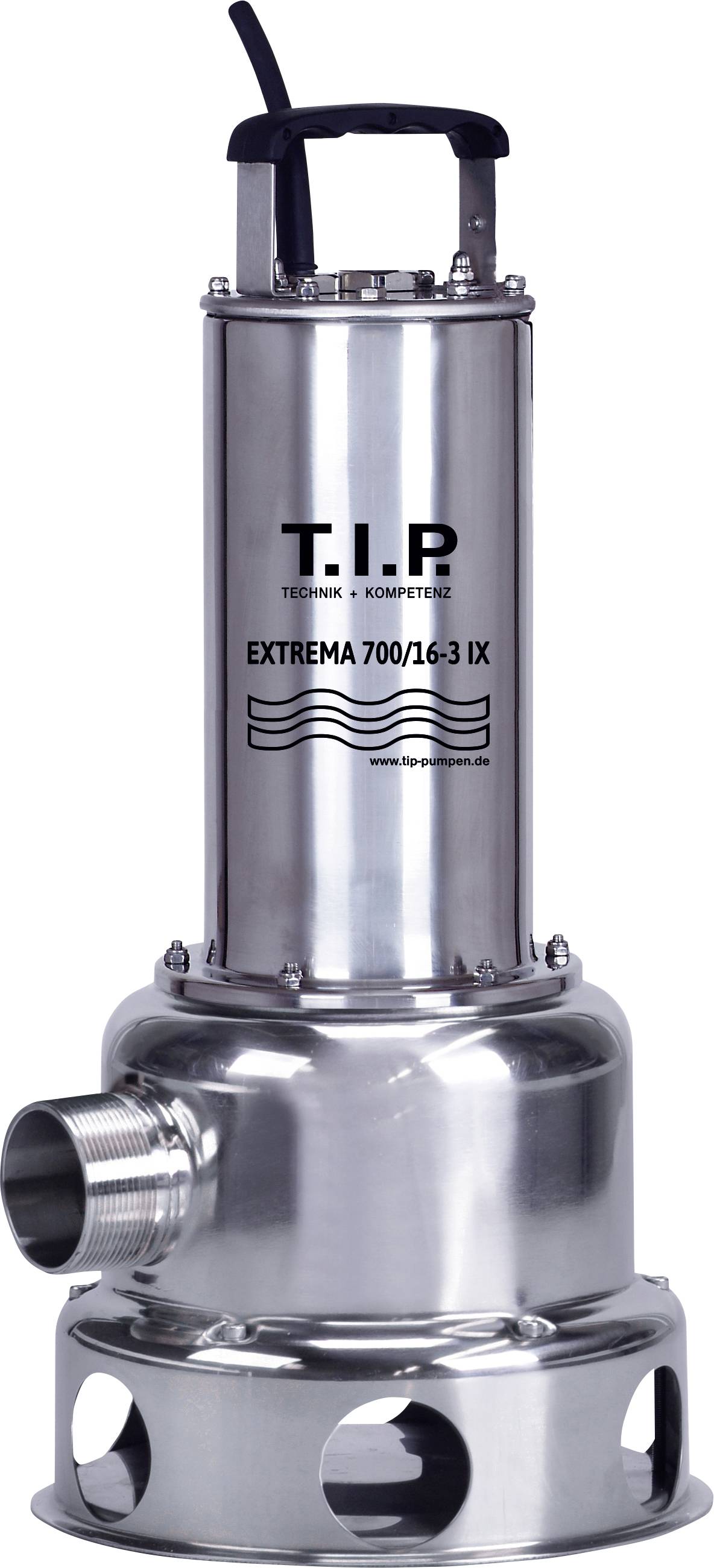

T.I.P. - Technische Industrie Produkte 30275 EXTREMA 700/16-3 IX Effluent sump pump 42000 l/h 16 m-0

T.I.P. - Technische Industrie Produkte 30275 EXTREMA 700/16-3 IX Effluent sump pump 42000 l/h 16 m-1

1/2

Datasheet (PDF)

Unavailable

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

EXTREMA 700/16-3 IX, stainless steel

Max. flow 42,000 l/h
Engine 2,500 Watt

Technical specifications

Max. Size of pumped solids 50 mm
Max. Temp. Of pumped liquid normal operation (fully immersed) (Tmax) 50 °C.
Max. Temp. Of the pumped liquid for a short time (completely immersed) (Tmax. ≤ 4 min) 3) 95 °C (max. 4 min)
Max. Starting frequency in one hour 30, evenly distributed
Cable version H07RN-F (4G-1 mm2)

Product type: Effluent sump pump

Max. delivery head: 16 m

Max. feed rate: 42000 l/h

Max. discharge pressure: 1.6 bar

Operating voltage: 400 V

Power consumption (P1): 2500 W

Pressure connection: 59.62 mm (2") OT

Max. size of solids: 50 mm

Immersion depth: 7 m

Max. cable length: 10 m

Length: 255 mm

Width: 235 mm

Height: 450 mm

Dim: (L x W x H) 255 x 235 x 450 mm

Weight: 13.5 kg

: IPX8

Documents & Downloads

Datasheet

Datasheet 2368852 T.I.P. - Technische Industrie Produkte 30275 EXTREMA 700/16-3 IX Effluent sump pump 42000 l/h 16 m

User & Safety Instructions

User & Safety Instructions 2368852 T.I.P. - Technische Industrie Produkte 30275 EXTREMA 700/16-3 IX Effluent sump pump 42000 l/h 16 m

Warranty Terms

Warranty Terms 2368852 T.I.P. - Technische Industrie Produkte 30275 EXTREMA 700/16-3 IX Effluent sump pump 42000 l/h 16 m

Description

The 400 V Extrema 700/16-3 IX pump, with its unique flow rate of up to 42,000 l/h and a delivery height of up to 16 m, can be considered an absolute non-plus ultra under the dirty water pumps.
It is particularly suitable for professional use in excavation pits, etc. This pump is also suitable - in contrast to conventional submersible waste water pumps - for transporting liquids with a higher temperature, such as washing hose - in normal operation up to 50°C, temporarily (approx. 4 min) even up to 95°C.
