Name: T.I.P. - Technische Industrie Produkte 30276 SaltOne 16000 I-PX DUO Pool pump 16000 l/h 10 m
Brand: T.I.P. - Technische Industrie Produkte
SKU: 2368820

Silver submersible pump 'T.I.P. SaltOne 1600 I-PX DUO' with black cable and red plug, alongside a black ring.

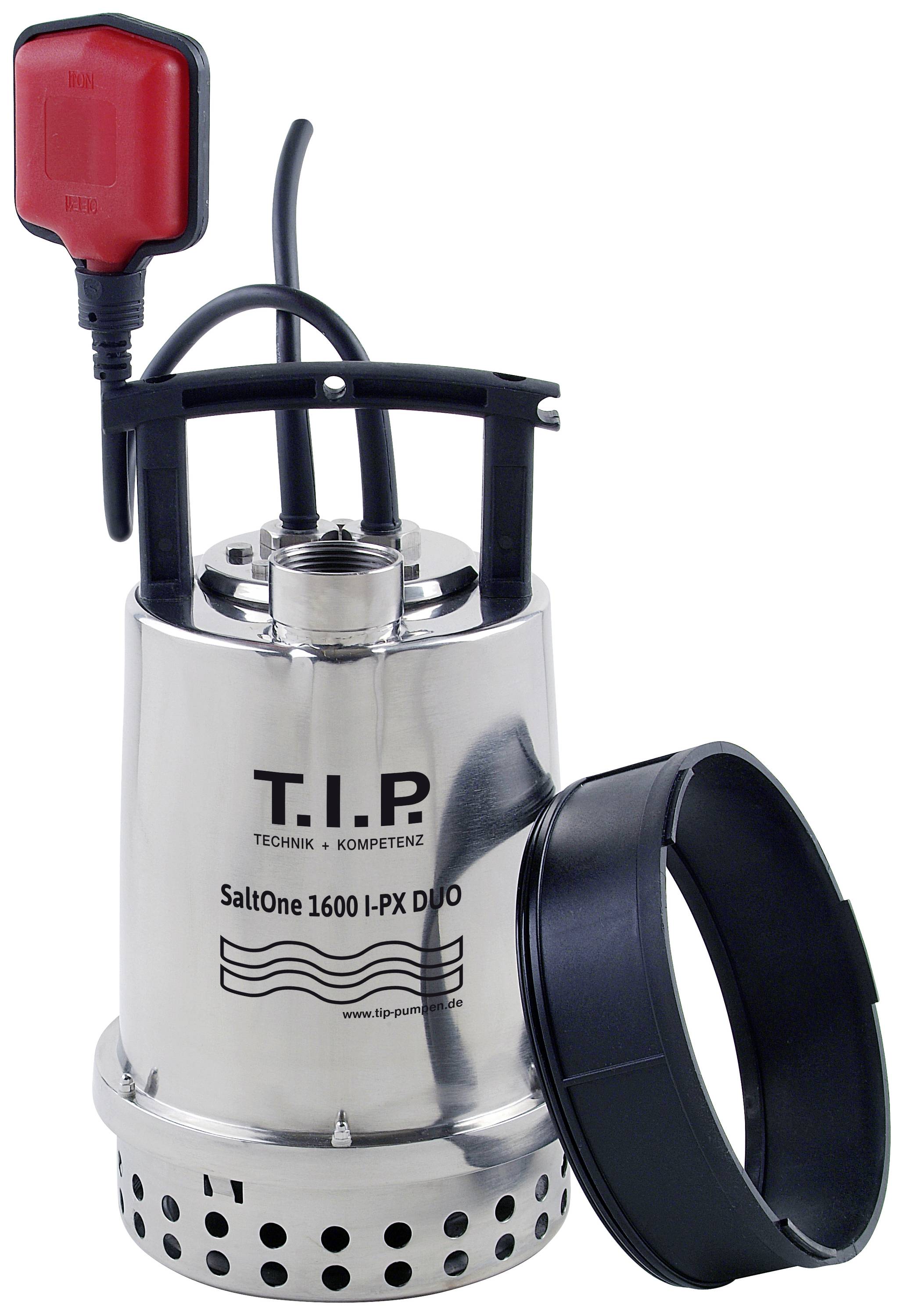

Wastewater Pump T.I.P. SaltOne 1600 I-PX DUO in stainless steel with cable and plastic ring, suitable for pumping tasks with high flow rate.

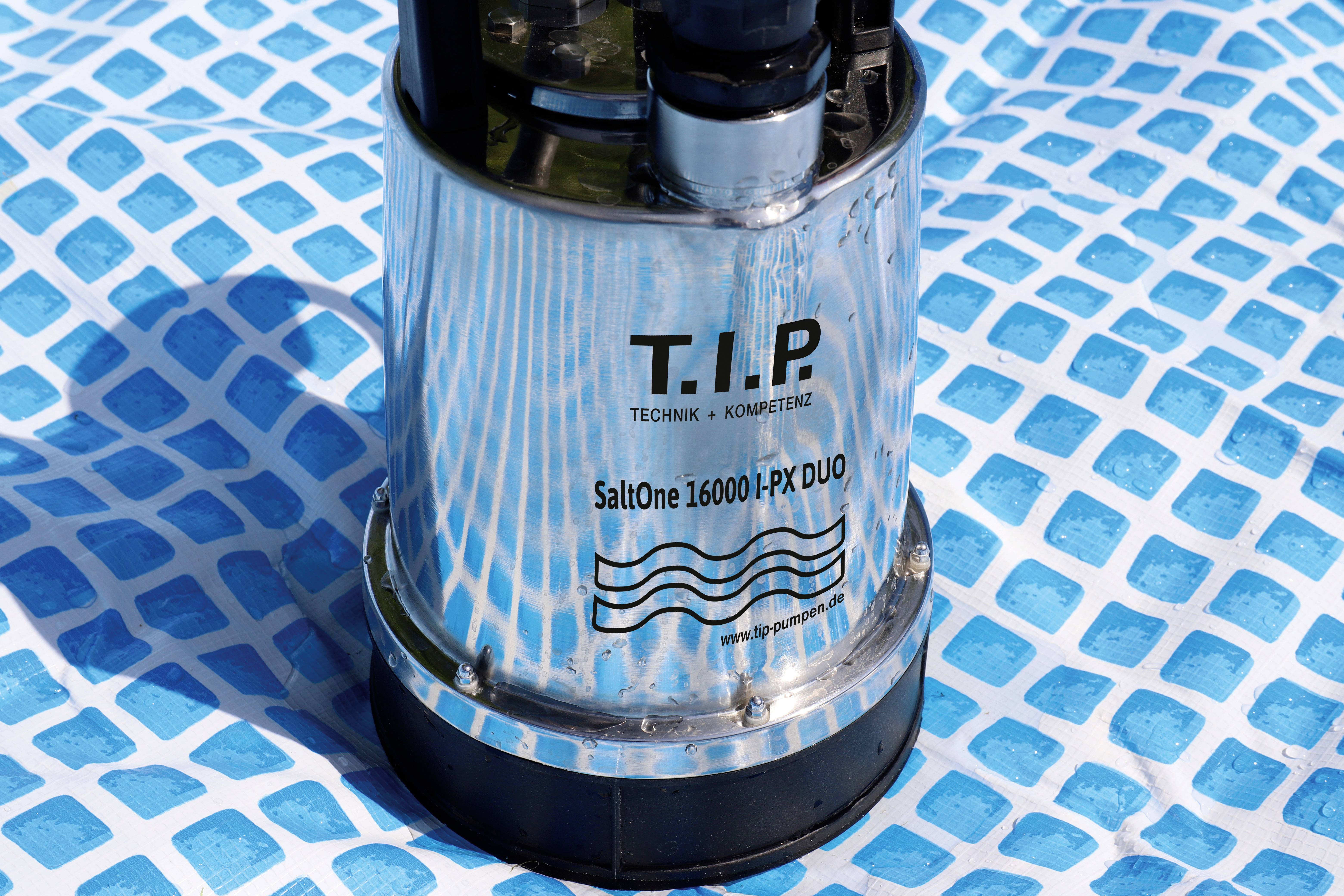

A silver water pump with the inscription 'T.I.P. SaltOne 16000 IPX DUO' stands on a blue and white mosaic pattern.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

SaltOne 16000 I-PX DUO, stainless steel

900 watt motor
Max. flow 16,000 l/h

Technical specifications

Pressure max. 1.0 bar
Cable type H05RN-F.
Temperature of the medium max. 90 °C.
Max. Grain size 2 mm with DUO-ring, 10 mm without DUO-ring
Minimum suction level 2 mm with DUO-ring, 16 mm without DUO-ring
Pump housing stainless steel

Product type: Pool pump

Max. delivery head: 10 m

Max. feed rate: 16000 l/h

Max. discharge pressure: 1 bar

Operating voltage: 230 V

Pressure connection: 39.0 mm (1 1/4") IT

Max. size of solids: 10 mm

Immersion depth: 7 m

Max. cable length: 10 m

Length: 165 mm

Width: 225 mm

Height: 270 mm

Dim: (L x W x H) 165 x 225 x 270 mm

Documents & Downloads

Datasheet

Datasheet 2368820 T.I.P. - Technische Industrie Produkte 30276 SaltOne 16000 I-PX DUO Pool pump 16000 l/h 10 m

User & Safety Instructions

User & Safety Instructions 2368820 T.I.P. - Technische Industrie Produkte 30276 SaltOne 16000 I-PX DUO Pool pump 16000 l/h 10 m

Warranty Terms

Warranty Terms 2368820 T.I.P. - Technische Industrie Produkte 30276 SaltOne 16000 I-PX DUO Pool pump 16000 l/h 10 m

Description

The salt water combination pump SaltOne 16000 I-PX DUO is the perfect choice for salt water, washing hose or high temperatures. The stainless steel of the quality class AISI 316 is extremely robust and ideally suited for pumping or reversing liquids with a salt content of up to 10%. This pump also works reliably with washing hoses or temperatures up to 50 °C (4 min even 90 °C). Another special feature is the specially developed flat suction ring "DUO-Ring", which transforms the pump into a powerful, flat suction pump with just one hand. For automatic and manual operation, the SaltOne 16000 I-PX DUO has a lockable float switch. The combination submersible pump is also equipped with a vertical pump outlet and check valve.
