Name: T.I.P. - Technische Industrie Produkte 30278 EXTREMA 450/12 IX-S Effluent sump pump 27000 l/h 12 m
Brand: T.I.P. - Technische Industrie Produkte
SKU: 2368854

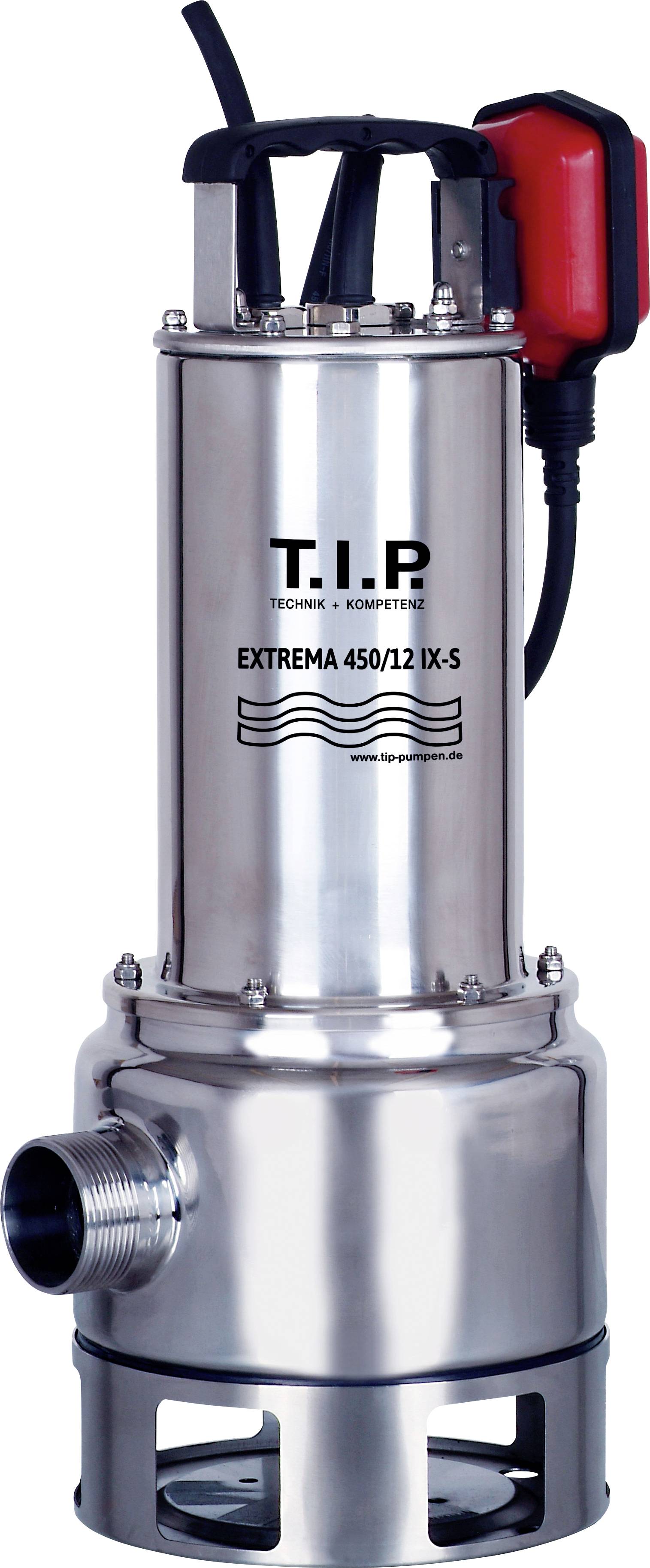

Stainless steel submersible pump by T.I.P., model 'Extrema 450/12 IX-S', suitable for wastewater, robust construction with red switch.

Datasheet (PDF)

Unavailable

4 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

EXTREMA 450/12 IX-S, STAINLESS STEEL

Max. flow 27,000 l/h
1,500 Watt motor

Technical specifications

Cable version H07RN8-F.
Weight (net) approx. 10.9 kg
Min Self-priming level (A) 2) 135 mm
Min Suction level (B) 2) 55 mm
Starting level (C) 2) 450 mm
Switch-off level (D) 2) 250 mm
Max. Pressure 1.2 bar
Max. Temp. Of pumped liquid normal operation (Tmax.) 50 °C
Max. Temp. Of the pumped liquid for a short time (Tmax. <4 min) 3) 95 °C (max. 4 min)
Max. Starting frequency in one hour 30, evenly distributed
Max. Salt content of pumped liquid 4%

Product type: Effluent sump pump

Max. delivery head: 12 m

Max. feed rate: 27000 l/h

Max. discharge pressure: 1.2 bar

Operating voltage: 230 V

Power consumption (P1): 1500 W

Pressure connection: 59.62 mm (2") OT

Max. size of solids: 40 mm

Immersion depth: 7 m

Max. cable length: 10 m

Length: 170 mm

Width: 210 mm

Height: 430 mm

Dim: (L x W x H) 170 x 210 x 430 mm

Weight: 10.9 kg

: IPX8

Documents & Downloads

Datasheet

Datasheet 2368854 T.I.P. - Technische Industrie Produkte 30278 EXTREMA 450/12 IX-S Effluent sump pump 27000 l/h 12 m

User & Safety Instructions

User & Safety Instructions 2368854 T.I.P. - Technische Industrie Produkte 30278 EXTREMA 450/12 IX-S Effluent sump pump 27000 l/h 12 m

Warranty Terms

Warranty Terms 2368854 T.I.P. - Technische Industrie Produkte 30278 EXTREMA 450/12 IX-S Effluent sump pump 27000 l/h 12 m

Description

EXTREMA 450/12 IX-S, the pump of the absolute top class is equipped with self-lubricating precision ball bearings and a highly efficient motor with thermal overload protection.
The pump housing is made of high-quality stainless steel and in addition a self-cleaning Vortex impeller made of cast stainless steel is installed. The pump works by a float switch in automatic or manual operation. It also features:
- perfect for transporting liquids with a higher temperature, in normal operation up to 50 °C, temporarily (approx. 4 min) even up to 95 °C.
- also specially designed for use in salty water up to 4%, thus suitable for sea water.
- Dirty particles up to 40 mm grain size are a lightness for this special submersible pump.

This text is machine translated.
