Name: T.I.P. - Technische Industrie Produkte 31311 HWW 1300/50 Plus TLS Domestic water pump 230 V 4.200 l/h
Brand: T.I.P. - Technische Industrie Produkte
SKU: 2115020

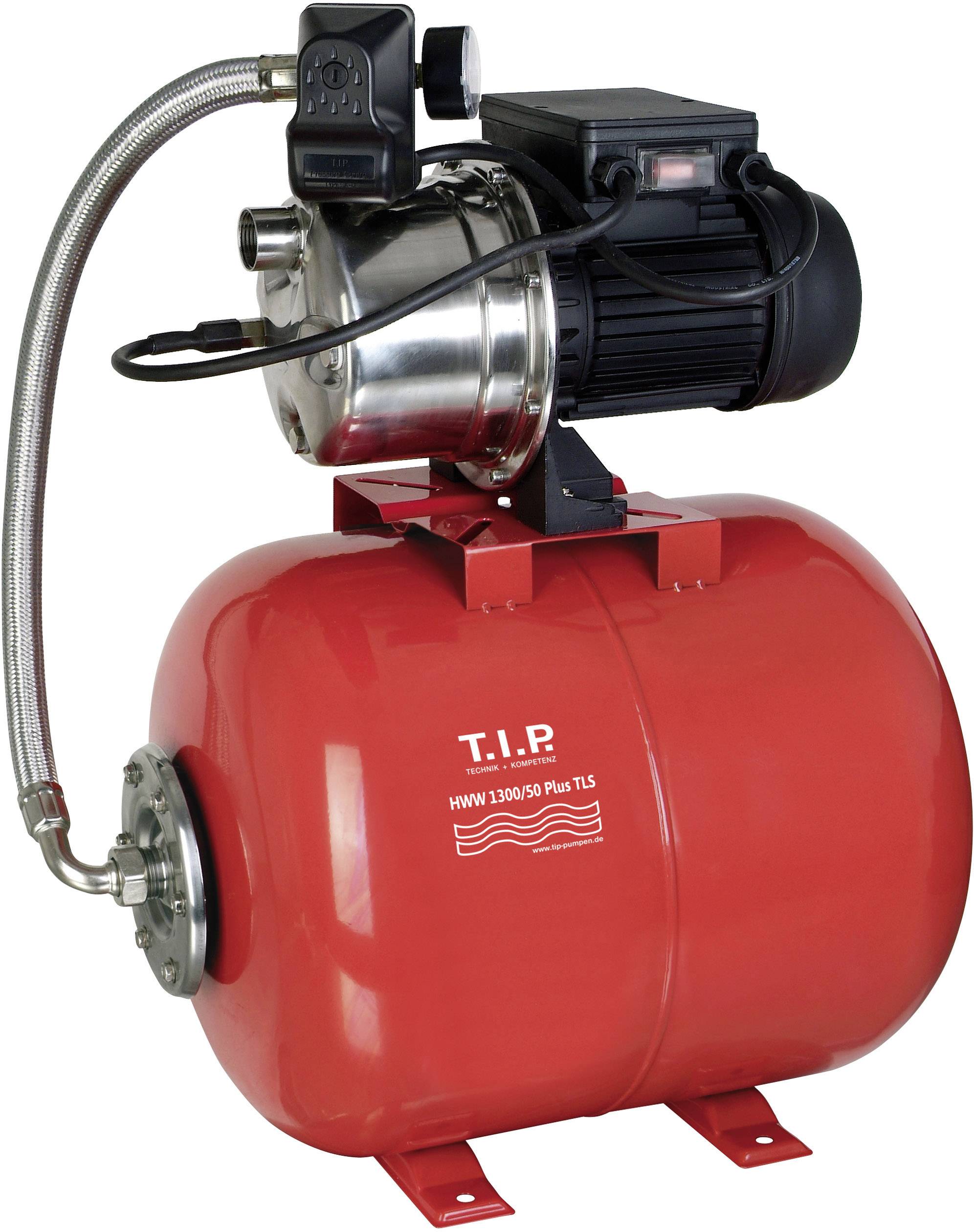

'Red water pump with black motor, mounted on red tank. Inscription: T.I.P HWW 1300/50 Plus TLS.'

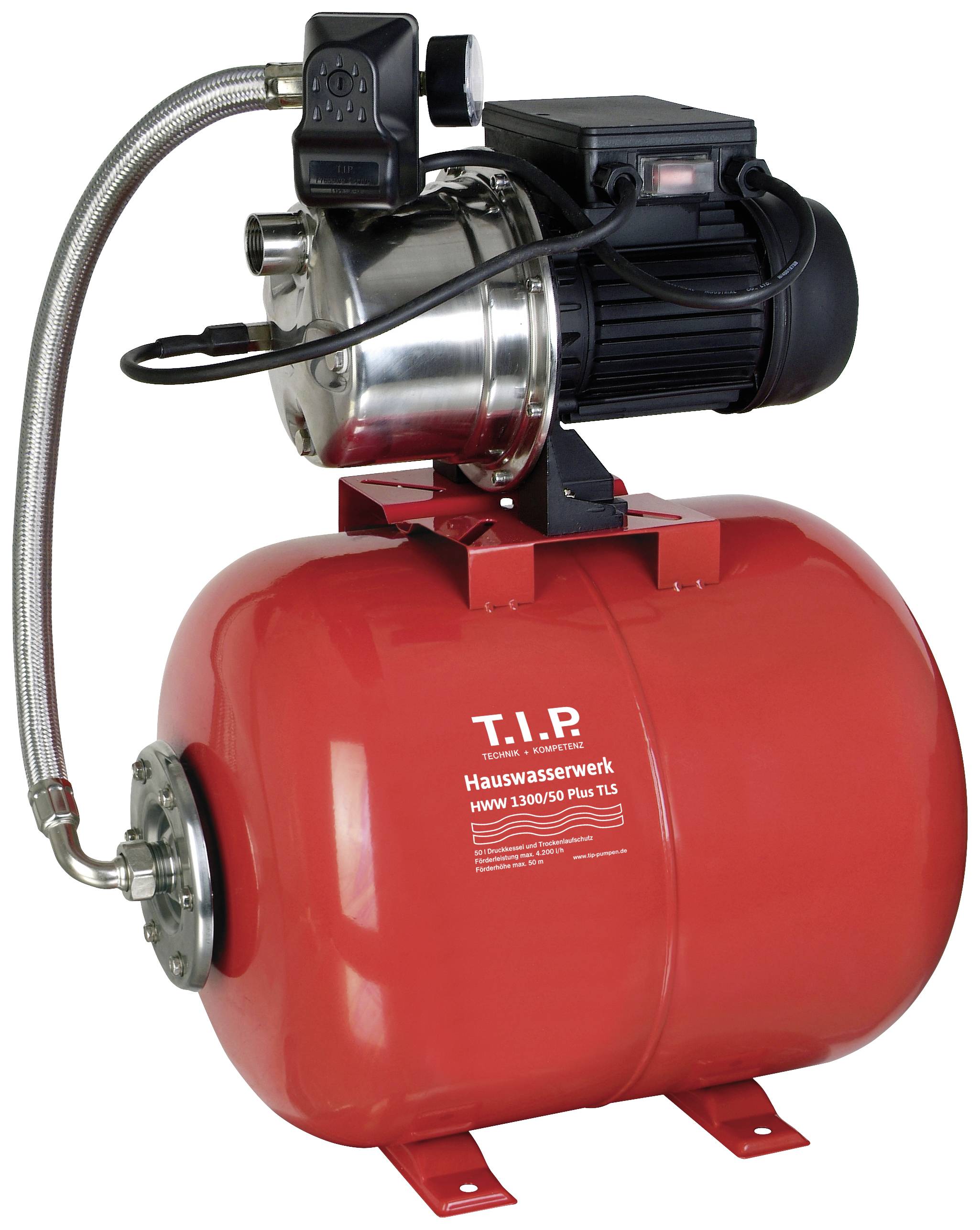

Red domestic water pump with black electrical device on top, silver metal pipe on the left side. Text: 'T.I.P. Home Water System'.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Alternative article by TOOLCRAFT

TOOLCRAFT TO-8992890 Domestic water pump 230 V AC 4600 l/h

€ 104.99

plus VAT. plus

Highlights & Details

T.I.P. Domestic water supply HWW 1300/50 Plus TLS

Maintenance-free capacitor motor with thermal overload protection
Integrated dry run protection (TLS)
Food-safe membrane made of high-quality EPDM

Technical specifications

Product type: Domestic water pump

Operating voltage: 230 V

Power consumption (P1): 1200 W

Max. feed rate: 4.200 l/h

Max. delivery head: 50 m

Max. discharge pressure: 5 bar

Boiler volume: 50 l

Selfpriming up to: 9 m

Max. cable length: 1.5 m

Weight: 17.6 kg

Factory colour: Red
Black
Silver

Documents & Downloads

Datasheet

Datasheet 2115020 T.I.P. - Technische Industrie Produkte 31311 HWW 1300/50 Plus TLS Domestic water pump 230 V 4.200 l/h

User & Safety Instructions

User & Safety Instructions 2115020 T.I.P. - Technische Industrie Produkte 31311 HWW 1300/50 Plus TLS Domestic water pump 230 V 4.200 l/h

Warranty Terms

Warranty Terms 2115020 T.I.P. - Technische Industrie Produkte 31311 HWW 1300/50 Plus TLS Domestic water pump 230 V 4.200 l/h

Description

This special house water supply in raised design has a 50 l pressure vessel made of steel as well as a powerful self-priming jet pump with pump housing made of stainless steel. The extra large pressure vessel and the appropriately dimensioned tank hose guarantee a very high degree of efficiency and predestine this device especially for automatic domestic water supply and as a pressure booster system. Thanks to the food-safe membrane, the use in drinking water production is no problem. The built-in dry run protection prevents damage to the hydraulic unit in the event of water shortage faults.

This text is machine translated.
