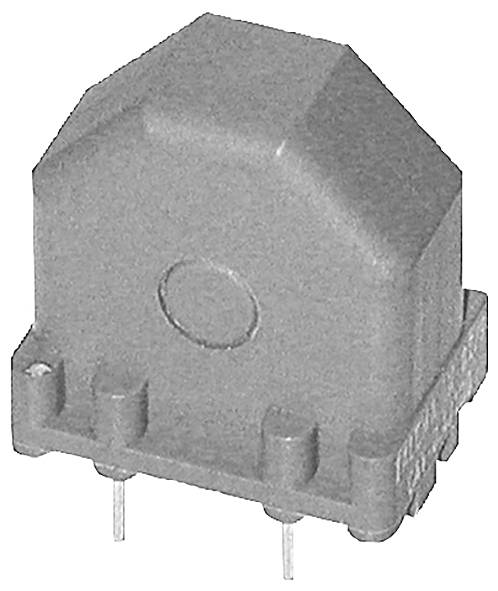

Talema CAX-2,0-1,0 CAX Common mode chokes enclosed Contact spacing 5 mm 1 mH 2 A 1 pc(s) Piece
Packaging type
Piece
Product type
Common mode chokes
Inductance (L)
1 mH
Max. temperature
125 °C
Features
enclosed
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Talema current-compensated chokes
Our service for you
Technical specifications
- Mounting type: Vertical
- Nominal resistance 65 mOhm
- Structure: Partly cast
- Number of windings: 2
- Two separate windings for low capacitive resistance
- Partially cast in the bowl
- Pin dimension: 0.6X0,88mm
- Packaging type
Piece
- Product type
Common mode chokes
- Features
enclosed
- Inductance (L)
1 mH
- Tolerance ±
0.3 %
- Nominal voltage
250 V AC
- Nominal current
2 A
- Length
17.8 mm
- Width
12.8 mm
- Height
20 mm
- CS
5 mm
- Min. temperature
-40 °C
- Max. temperature
125 °C
- Content
1 pc(s)
- Dim
(L x W x H) 17.8 x 12.8 x 20 mm
- RoHS-compliant
Yes
- Type
CAX
