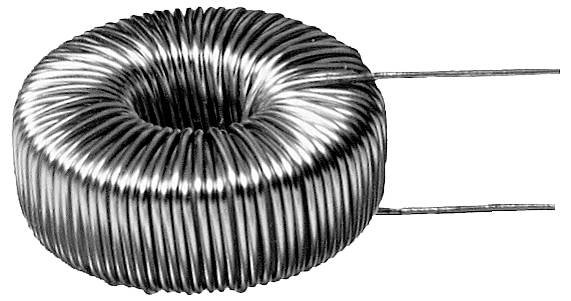

Talema DPO-1,0-100 DPO-1,0-100 Smoothing choke Toroidal core circular 100 µH 1 A 1 pc(s) Piece
Packaging type
Piece
Product type
Smoothing choke
Inductance (L)
100 µH
Max. temperature
125 °C
Features
Toroidal core
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Idle inductance 127 µH
- Nominal resistance 0,097 Ohm
- Storage energy 50 µJ
- Construction: Non-sealed
- Number of windings: 1
- Min. Operating temperature -40 °C
- Max. operating temperature: 125 °C
- Packaging type
Piece
- Product type
Smoothing choke
- Features
Toroidal core
- Type
circular
- Inductance (L)
100 µH
- Tolerance ±
0.15 %
- Nominal current
1 A
- Material
Iron
- Width
8 mm
- (Ø)
15 mm
- Min. temperature
-40 °C
- Max. temperature
125 °C
- Content
1 pc(s)
- Dim
(Ø) 15 mm
- RoHS-compliant
Yes
- Type
DPO-1,0-100
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3359644 Talema DPO-1,0-100 DPO-1,0-100 Smoothing choke Toroidal core circular 100 µH 1 A 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3359644 Talema DPO-1,0-100 DPO-1,0-100 Smoothing choke Toroidal core circular 100 µH 1 A 1 pc(s) Piece
Description
Features
- Ring core chokes from Talema are characterized by a low magnetic scattering.
- Compact, small design
- Good price/performance ratio
- Low interference radiation
- Low power losses
- Tin-plated solder connections for reliable PCB mounting
- Can be used for applications up to 100 kHz
- This text is machine translated.
