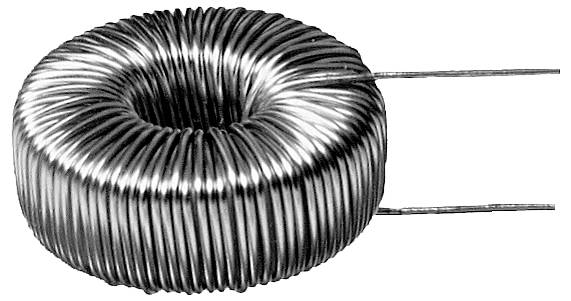

Talema DPO-2.0-47 DPO-2.0-47 Smoothing choke Toroidal core 47 µH 2 A 1 pc(s) Piece
Packaging type
Piece
Product type
Smoothing choke
Inductance (L)
47 µH
Max. temperature
125 °C
Features
Toroidal core
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Idle inductance 73 µH
- Nominal resistance 0,090 Ohm
- Storage energy 94 µJ
- Construction: Non-sealed
- Number of windings: 1
- Min. Operating temperature -40 °C
- Max. operating temperature: 125 °C
- Packaging type
Piece
- Product type
Smoothing choke
- Features
Toroidal core
- Inductance (L)
47 µH
- Tolerance ±
0.15 %
- Nominal current
2 A
- Material
Iron
- Width
8 mm
- (Ø)
15 mm
- Min. temperature
-40 °C
- Max. temperature
125 °C
- Content
1 pc(s)
- Dim
(Ø) 15 mm
- RoHS-compliant
Yes
- Type
DPO-2.0-47
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3359595 Talema DPO-2.0-47 DPO-2.0-47 Smoothing choke Toroidal core 47 µH 2 A 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3359595 Talema DPO-2.0-47 DPO-2.0-47 Smoothing choke Toroidal core 47 µH 2 A 1 pc(s) Piece
Description
Features
- Ring core chokes from Talema are characterized by a low magnetic scattering.
- Compact, small design
- Good price/performance ratio
- Low interference radiation
- Low power losses
- Tin-plated solder connections for reliable PCB mounting
- Can be used for applications up to 100 kHz
