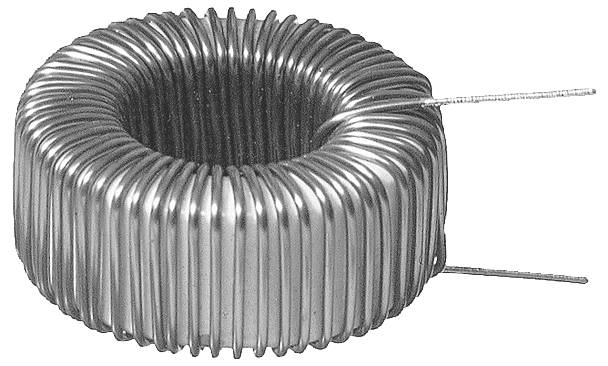

Talema DPO-7,5-68 DPO-7,5-68 Smoothing choke Toroidal core 68 µH 7.5 A 1 pc(s) Piece
Packaging type
Piece
Product type
Smoothing choke
Inductance (L)
68 µH
Max. temperature
125 °C
Features
Toroidal core
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Idle inductance 105 µH
- Nominal resistance 0,040 Ohm
- Storage energy 1,913 µJ
- Construction: Non-sealed
- Number of windings: 1
- Min. Operating temperature -40 °C
- Max. operating temperature: 125 °C
- Packaging type
Piece
- Product type
Smoothing choke
- Features
Toroidal core
- Inductance (L)
68 µH
- Tolerance ±
0.15 %
- Nominal current
7.5 A
- Material
Iron
- Width
14 mm
- (Ø)
42 mm
- Min. temperature
-40 °C
- Max. temperature
125 °C
- Content
1 pc(s)
- Dim
(Ø) 42 mm
- RoHS-compliant
Yes
- Type
DPO-7,5-68
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3359609 Talema DPO-7,5-68 DPO-7,5-68 Smoothing choke Toroidal core 68 µH 7.5 A 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3359609 Talema DPO-7,5-68 DPO-7,5-68 Smoothing choke Toroidal core 68 µH 7.5 A 1 pc(s) Piece
Description
Features
- Ring core chokes from Talema are characterized by a low magnetic scattering.
- Compact, small design
- Good price/performance ratio
- Low interference radiation
- Low power losses
- Tin-plated solder connections for reliable PCB mounting
- Can be used for applications up to 100 kHz
- This text is machine translated.
