Image similar

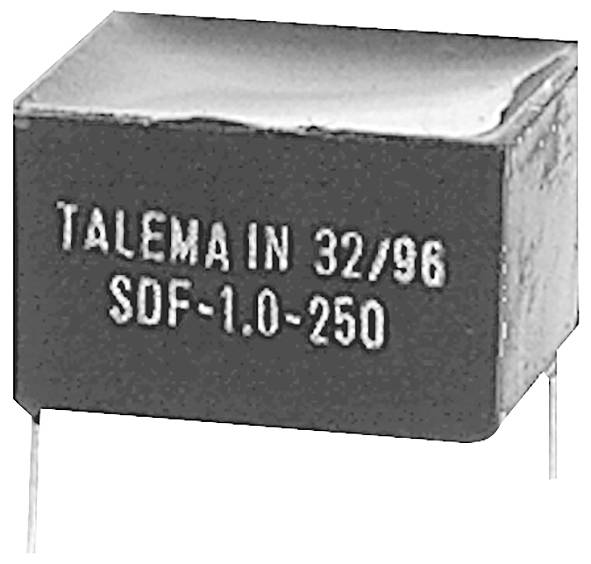

Talema SDF-1.0-250 SD Smoothing choke horizontal 250 µH 1 A 1 pc(s) Single
Packaging type
Single
Product type
Smoothing choke
Inductance (L)
250 µH
Max. temperature
125 °C
Features
horizontal
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Talema high-performance storage chokes
Our service for you
Technical specifications
- Mounting type: Horizontal
- Idle inductance 323 µH
- Nominal resistance 354 mOhm
- 125 µJ
- Structure: Sealed
- Number of windings: 1
- High degree of efficiency and quality
- Suitable for frequencies up to 200kHz
- Compact and small size
- High inductance stability
- Achieved in class GFP (-40...+125°C, humidity class F) according to DIN40040
- Packaging type
Single
- Product type
Smoothing choke
- Features
horizontal
- Inductance (L)
250 µH
- Tolerance ±
0.15 %
- Nominal current
1 A
- Material
GRP
- Length
17.5 mm
- Width
15 mm
- Height
11 mm
- Min. temperature
-40 °C
- Max. temperature
125 °C
- Content
1 pc(s)
- Dim
(L x W x H) 17.5 x 15 x 11 mm
- RoHS-compliant
Yes
- Type
SD
Documents & Downloads
Datasheet
Datasheet 3357592 Talema SDF-1.0-250 SD Smoothing choke horizontal 250 µH 1 A 1 pc(s) Single
