TANCAP CC4-0805N101J101A1T Ceramic capacitor THT 100 pF 100 V 5 % (W x H) 4.2 mm x 25 mm 1 pc(s)

A strip with yellow, round electronic components fixed to two wire terminals, secured on paper tape.
Technical drawing of an electronic component with dimensions: three holes in the main housing, four pins. Marking of height and width axes and seating plane.

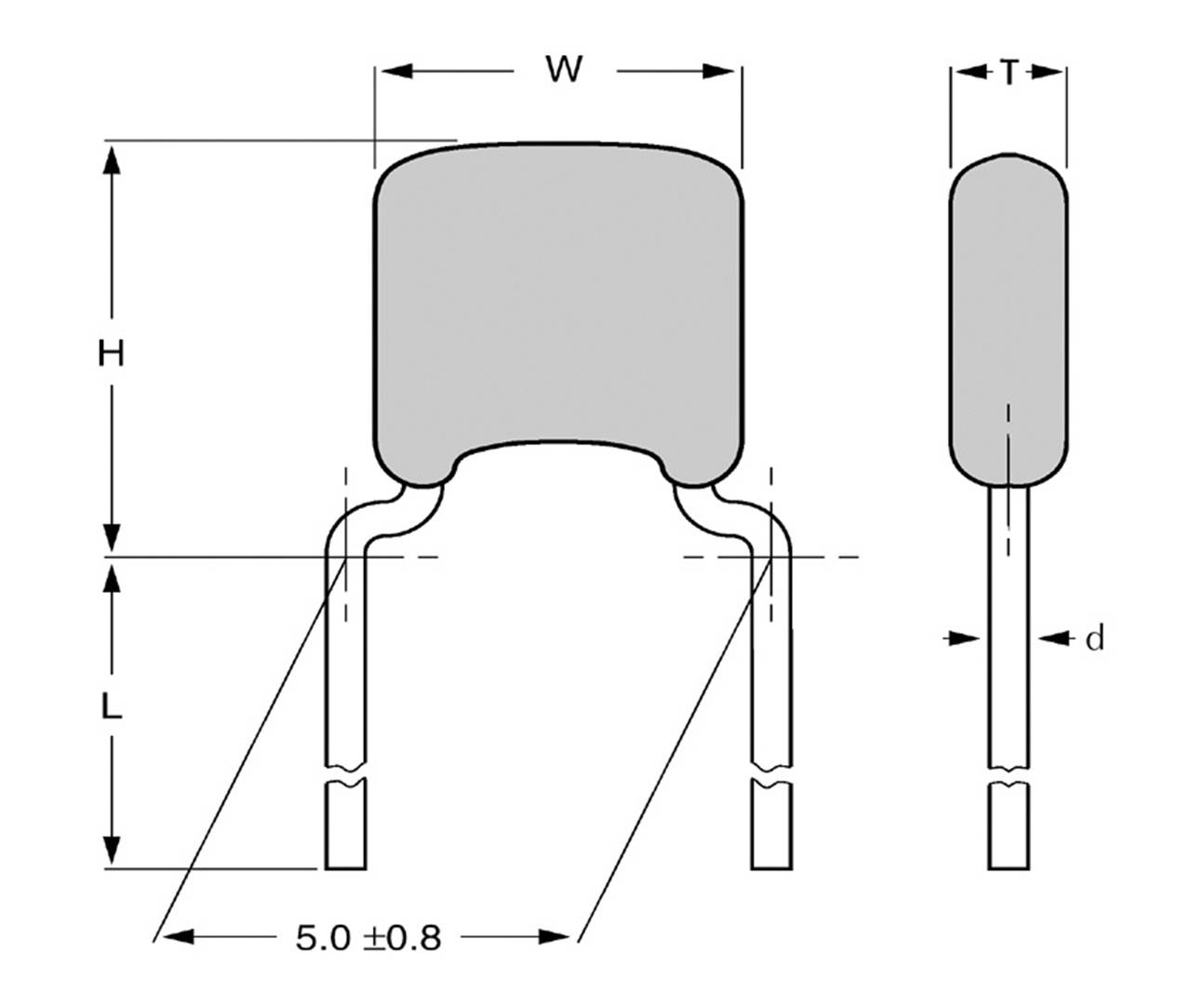

Technical drawing of an electronic component. Shown are front and side views with dimensions: Height (H), Width (W), Thickness (T) and Leg Length (L).
1/3
Product type
Ceramic capacitor
Type
THT
Nominal voltage
100 V
Capacity (elec.)
100 pF
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
536 Piece(s) (Only while stocks last)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 0.06 / piece)
€ 0.06
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Product type

Ceramic capacitor

Type

THT

Nominal voltage

100 V

Capacity (elec.)

100 pF

Tolerance ±

5 %

Content

1 pc(s)

Material properties

NPO

Width

4.2 mm

Height

25 mm

CS

5 mm

Min. temperature

-55 °C

Max. temperature

125 °C

Dim

(W x H) 4.2 mm x 25 mm

Material

Ceramic

Type

CC4-0805N101J101A1T

Documents & Downloads

Datasheet

Datasheet 1578721 TANCAP CC4-0805N101J101A1T Ceramic capacitor THT 100 pF 100 V 5 % (W x H) 4.2 mm x 25 mm 1 pc(s)
