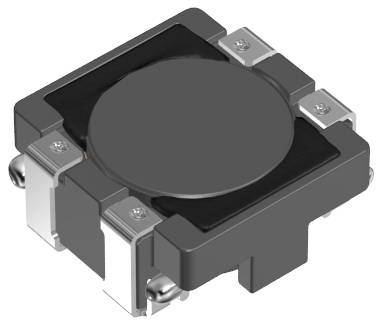

TDK ACM4520-231-2P-T000 Gleichtaktdrosseln/Filter für Stromleitungen Choke SMD 1808 600 nH 50 mΩ 230 2.6 A 1 pc(s)
Part number:
Item no:
Product type
Choke
Type
SMD
Inductance (L)
600 nH
Resistance
50 mΩ
Max. temperature
85 °C
Datasheet (PDF)
Total (€ 1.79 / piece)
€ 1.79
incl. VAT
14-day return policy included
Highlights & Details
TDK ACM4520-231-2P-T000
- Chip common mode filter for applications with high currents.
- Each series offers an excellent synchronization impedance and noise suppression in a compact casing.
- Thanks to the flat profile and the small size it is ideal for surface mounting. Operating temperature range -40 to +85 oC
- Common mode
- This text is machine translated.
Our service for you
Technical specifications
- 2 lines
- Product type
Choke
- Type
SMD
- Type
1808
- Inductance (L)
600 nH
- Impedance at 100 MHz
230
- Frequency
100 MHz
- Test frequency
100 MHz
- Sample rate
100 MHz
- Resistance
50 mΩ
- Nominal voltage
50 V DC
- Nominal current
2.6 A
- Material
Duplex steel
- Length
4.7 mm
- Width
4.5 mm
- Height
2 mm
- Min. temperature
-40 °C
- Max. temperature
85 °C
- Weight
0.14 g
- Content
1 pc(s)
- Dim
(L x W x H) 4.7 x 4.5 x 2 mm
- RoHS-compliant
Yes
- Type
Gleichtaktdrosseln/Filter für Stromleitungen
Documents & Downloads
Datasheet
Datasheet 3555220 TDK ACM4520-231-2P-T000 Gleichtaktdrosseln/Filter für Stromleitungen Choke SMD 1808 600 nH 50 mΩ 230 2.6 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3555220 TDK ACM4520-231-2P-T000 Gleichtaktdrosseln/Filter für Stromleitungen Choke SMD 1808 600 nH 50 mΩ 230 2.6 A 1 pc(s)
