Name: TDK ACM4520-421-2P-T000 Gleichtaktdrosseln/Filter für Stromleitungen Choke SMD SMD 2 1.1 µH 55 mΩ 420 Ω 2.4 A 1 pc(s)
Brand: TDK
SKU: 3555221
Availability: SoldOut

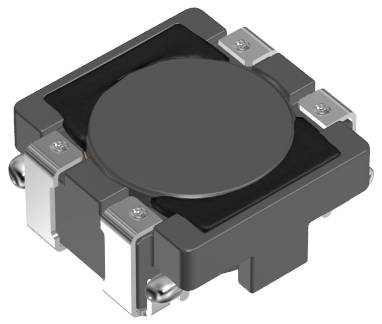

A 3D rendered model of a small, square electronic component with a circular central area and four visible screw fixtures at the corners.

Product type

Choke

Type

SMD

Inductance (L)

1.1 µH

Resistance

55 mΩ

Max. temperature

85 °C

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 1.79 / piece)

€ 1.79

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

TDK common mode chokes/filter ACM4520-421-2P-T000

Chip common mode filter for applications with high currents.
Each series offers an excellent synchronization impedance and noise suppression in a compact casing.
Thanks to the flat profile and the small size it is ideal for surface mounting.
Operating temperature range -40 to +85 oC
This text is machine translated.

Technical specifications

2-lines
Tape & Reel

Product type: Choke

Type: SMD

Type: SMD 2

Inductance (L): 1.1 µH

Impedance at 25 MHz: 180 Ω

Impedance at 100 MHz: 420 Ω

Resistance: 55 mΩ

Nominal voltage: 50 V DC

Nominal current: 2.4 A

Material: Duplex steel

Length: 4.7 mm

Width: 4.5 mm

Height: 2 mm

Min. temperature: -40 °C

Max. temperature: 85 °C

Weight: 0.14

Industrial packaging: Yes

Content: 1 pc(s)

Dim: (L x W x H) 4.7 x 4.5 x 2 mm

RoHS-compliant: Yes

Type: Gleichtaktdrosseln/Filter für Stromleitungen

UKCA: yes
