Name: TDK ACM4520-901-2P-T000 Gleichtaktdrosseln/Filter für Stromleitungen Choke SMD 1808 1.6 µH 60 mΩ 900 Ω 2 A 1 pc(s)
Brand: TDK
SKU: 3555222
Availability: SoldOut

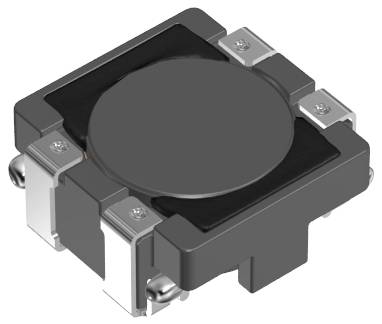

A black and silver electronic component with a circular center, featuring multiple connectors around the edges, likely a surface-mount inductor.

Product type

Choke

Type

SMD

Inductance (L)

1.6 µH

Resistance

60 mΩ

Max. temperature

85 °C

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 0.70 / piece)

€ 0.70

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

TDK common mode chokes/filter ACM4520-901-2P-T000

Chip common mode filter for applications with high currents.
Each series offers an excellent synchronization impedance and noise suppression in a compact casing.
Thanks to the flat profile and the small size it is ideal for surface mounting.
Operating temperature range -40 to +85 oC

Our service for you

Technical specifications

2 lines

Product type: Choke

Type: SMD

Type: 1808

Inductance (L): 1.6 µH

Impedance at 25 MHz: 420 Ω

Impedance at 100 MHz: 900 Ω

Frequency: 100 kHz

Test frequency: 100 MHz

Sample rate: 100 MHz

Resistance: 60 mΩ

Nominal voltage: 50 V DC

Nominal current: 2 A

Material: Duplex steel

Length: 4.7 mm

Width: 4.5 mm

Height: 2 mm

Min. temperature: -40 °C

Max. temperature: 85 °C

Weight: 0.14 g

Industrial packaging: Yes

Content: 1 pc(s)

Dim: (L x W x H) 4.7 x 4.5 x 2 mm

RoHS-compliant: Yes

Type: Gleichtaktdrosseln/Filter für Stromleitungen
