Name: TDK ACM7060-301-2PL-TL01 Gleichtaktdrosseln/Filter für Stromleitungen Choke SMD 600 nH 10 mΩ 300 Ω 5 A 1 pc(s) Tape
Brand: TDK
SKU: 3555223
Availability: SoldOut

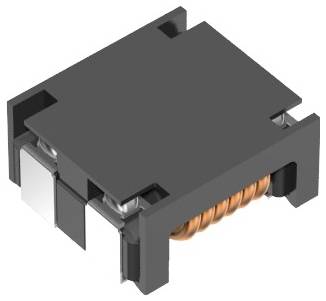

A rectangular electronic component with a black casing housing a visible copper coil, likely an inductor or similar device.

Packaging type

Tape

Product type

Choke

Type

SMD

Inductance (L)

600 nH

Resistance

10 mΩ

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 2.79 / piece)

€ 2.79

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

TDK common mode chokes/filter ACM7060-301-2PL-TL01

Chip common mode filter for applications with high currents.
Each series offers excellent common clock impedance and noise suppression in a compact casing.
Compatible with high-density portable devices that are becoming smaller and lighter due to their reduced overall height.
Operating temperature range -40 to +85 oC
This text is machine translated.

Our service for you

Technical specifications

Chip design
2 lines

Packaging type: Tape

Product type: Choke

Type: SMD

Inductance (L): 600 nH

Impedance at 100 MHz: 300 Ω

Frequency: 100 MHz

Test frequency: 100 MHz

Sample rate: 100 MHz

Resistance: 10 mΩ

Nominal voltage: 80 V DC

Nominal current: 5 A

Material: Duplex steel

Length: 7 mm

Width: 6 mm

Height: 3.5 mm

Min. temperature: -40 °C

Max. temperature: 85 °C

Content: 1 pc(s)

Dim: (L x W x H) 7 x 6 x 3.5 mm

RoHS-compliant: Yes

Type: Gleichtaktdrosseln/Filter für Stromleitungen

Variants(All information include VAT, plus shipping costs)

Impedance at 100 MHz

Type

Inductance (L)

Resistance

Max. temperature

TDK ACM7060-301-2PL-TL01 Gleichtaktdrosseln/Filter für Stromleitungen Choke SMD 600 nH 10 mΩ 300 Ω 5 A 1 pc(s) Tape

Item no:3555223

Unavailable

Conrad Electronic

This article

300 Ω

SMD

600 nH

10 mΩ

85 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2.79^*
