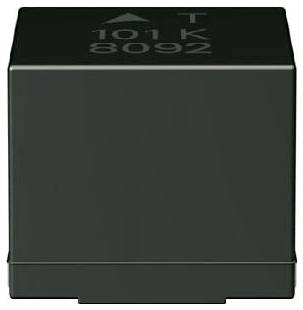

A small black electronic component with white text on top: 'T 101 K 8092.'

A small black electronic component with white text on top: 'T 101 K 8092.'

Packaging type

Tape on Full reel

Product type

Inductor

Type

SMD

Inductance (L)

10 µH

Resistance

0.132 Ω

Datasheet (PDF)

TDK

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 1.29 / piece)

€ 1.29

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

TDK SMT inductors, SIMID series B82442T1103K000

Temperature range: -35 to 150 °C
Very high current carrying capacity
High L-values
Complies with AEC-Q200
Suitable for lead-free reflow soldering according to JEDEC J-STD 020D
This text is machine translated.

Our service for you

Technical specifications

Packaging type: Tape on Full reel

Product type: Inductor

Type: SMD

Type: 2220

Inductance (L): 10 µH

Impedance at 25 MHz: 300 Ω

Impedance at 100 MHz: 1000 Ω

Frequency: 19 MHz

Quality Q at MHz: 2.52 MHz

Resonance: 19 MHz

Sample rate: 2.52 MHz

Tolerance ±: 10 %

Resistance: 0.132 Ω

Nominal current: 1420 mA

Material: Duplex steel

Length: 5.6 mm

Width: 5 mm

Height: 5 mm

CS: 3.6 mm

Min. temperature: -55 °C

Max. temperature: 150 °C

Weight: 0.4

Industrial packaging: Yes

Content: 1 pc(s)

Dim: (L x W x H) 5.6 x 5 x 5 mm

RoHS-compliant: Yes

Type: SMD / SMT-Induktivitäten

Documents & Downloads

Datasheet

Datasheet 3555235 TDK B82442T1103K000 SMD / SMT-Induktivitäten Inductor SMD 2220 Contact spacing 3.6 mm 10 µH 0.132 Ω 1000 Ω 1420 mA 1 pc(

User & Safety Instructions

User & Safety Instructions 3555235 TDK B82442T1103K000 SMD / SMT-Induktivitäten Inductor SMD 2220 Contact spacing 3.6 mm 10 µH 0.132 Ω 1000 Ω 1420 mA 1 pc(
