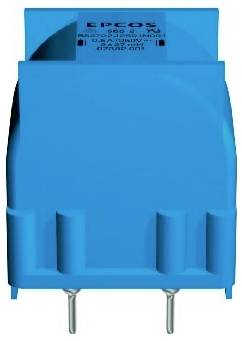

TDK B82722J2302N001 Gleichtaktdrosseln/Filter für Stromleitungen Choke THT 1.2 mH 56 mΩ 3 mA 1 pc(s) Tray
Part number:
Item no:
Packaging type
Tray
Product type
Choke
Type
THT
Inductance (L)
1.2 mH
Resistance
56 mΩ
Datasheet (PDF)
Total (€ 2.29 / piece)
€ 2.29
incl. VAT
14-day return policy included
Highlights & Details
TDK common mode choke B82722J2302N001
- Current-compensated double-ring coil
- Ferrite core with epoxy coating (UL 94 V-0)
- Plastic housing with cast pins (UL 94 V-0)1)
- Cast earth (UL 94 V-0)
- Sector winding
- High resonance frequency through special winding technology
- Approx. 1% stray inductance for symmetrical interference suppression
- Suitable for wave soldering
- Design corresponds to EN 60938-2 (VDE 0565-2) and UL 1283
- RoHS compliant
- This text is machine translated.
Technical specifications
- Packaging type
Tray
- Product type
Choke
- Type
THT
- Inductance (L)
1.2 mH
- Test frequency
10 kHz
- Sample rate
10 kHz
- Resistance
56 mΩ
- Nominal voltage
250 V AC
- Nominal current
3 mA
- Material
Duplex steel
- Length
23.3 mm
- Width
16.1 mm
- Height
25.4 mm
- Min. temperature
-40 °C
- Max. temperature
125 °C
- IEC climate class
40/125/56
- Industrial packaging
Yes
- Content
1 pc(s)
- Dim
(L x W x H) 23.3 x 16.1 x 25.4 mm
- RoHS-compliant
Yes
- Type
Gleichtaktdrosseln/Filter für Stromleitungen
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3555241 TDK B82722J2302N001 Gleichtaktdrosseln/Filter für Stromleitungen Choke THT 1.2 mH 56 mΩ 3 mA 1 pc(s) Tray
User & Safety Instructions
User & Safety Instructions 3555241 TDK B82722J2302N001 Gleichtaktdrosseln/Filter für Stromleitungen Choke THT 1.2 mH 56 mΩ 3 mA 1 pc(s) Tray
