Name: TDK MCZ1210AH301CPTA0G Gleichtaktdrosseln/Filter für Signalleistungen Choke SMD 4.5 Ω 300 Ω 100 mA 1 pc(s) Tape on Full
Brand: TDK
SKU: 3555244
Availability: SoldOut

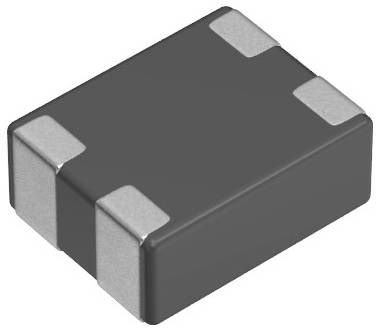

A small, rectangular electronic component with four metal connectors, likely for use in circuit boards or electronic devices.

Packaging type

Tape on Full reel

Product type

Choke

Type

SMD

Resistance

4.5 Ω

Max. temperature

85 °C

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 0.43 / piece)

€ 1.29

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

TDK common mode filter MCZ1210AH301CPTA0G

Multi-layer common-mode filter
High-speed differential signal line (USB 2.0, LVDS, etc.)
MCZ-AH series
Multi-layered common mode filter for high-speed differential signal lines.
Suppresses electromagnetic interferences through a wide frequency range of the differential transmission with a simultaneous same-clock impedance.
Almost no impairment of the high-speed differential signal.
Cut-off frequency in differential mode: Typ. 2.5 GHz
Operating temperature range -40°C to +85°C.
This text is machine translated.

Our service for you

Technical specifications

2 lines
No polarity

Packaging type: Tape on Full reel

Product type: Choke

Type: SMD

Impedance at 25 MHz: 150 Ω

Impedance at 100 MHz: 300 Ω

Test frequency: 100 MHz

Sample rate: 100 MHz

Tolerance ±: 25 %

Resistance: 4.5 Ω

Nominal voltage: 5 V

Nominal current: 100 mA

Length: 1.25 mm

Width: 1 mm

Height: 0.5 mm

Min. temperature: -40 °C

Max. temperature: 85 °C

Weight: 0.03 g

Industrial packaging: Yes

Content: 1 pc(s)

Dim: (L x W x H) 1.25 x 1 x 0.5 mm

RoHS-compliant: Yes
