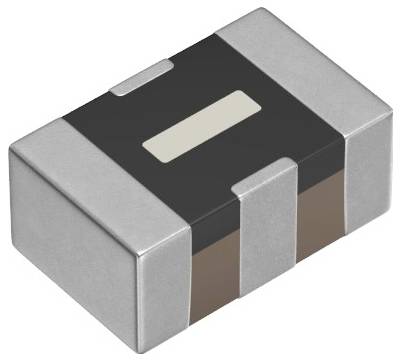

A rectangular electronic component with metal terminals on sides, often used in circuit boards for various electronic functions.

A rectangular electronic component with metal terminals on sides, often used in circuit boards for various electronic functions.

Packaging type

Piece

Product type

Filter

Type

SMD

Max. temperature

85 °C

Features

Multi-layered

Datasheet (PDF)

TDK

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 0.49 / piece)

€ 0.98

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

TDK 3-conductor-lead-through filter MEM2012F10R0T001

Multilayer chip EMC filter.
The monolithic design ensures high reliability.
The closed magnetic circuit enables a high packing density without cross-talk.
Steep damping characteristics and excellent EMC-suppression. Wide range of products, compatible with transmission and damping frequencies.
π switching is used.
Operating temperature range -40°C to +85°C.
This text is machine translated.

Our service for you

Technical specifications

Insertion loss: Type. 20 dB in the frequency range from 200 MHz to 2 GHz
Capacity (typ.) 90 pF
Number of channels: 1 (single channel)
Switching type LC (π-type)

Packaging type: Piece

Product type: Filter

Features: Multi-layered

Type: SMD

Type: 0805

Frequency: 10 MHz

Nominal voltage: 12 V

Nominal current: 200 mA

Length: 2 mm

Width: 1.25 mm

Height: 0.85 mm

Min. temperature: -40 °C

Max. temperature: 85 °C

Content: 1 pc(s)

Dim: (L x W x H) 2 x 1.25 x 0.85 mm

RoHS-compliant: Yes

Type: 3-Leiter-Durchführungsfilter

Documents & Downloads

Datasheet

Datasheet 3555246 TDK MEM2012F10R0T001 3-Leiter-Durchführungsfilter Filter Multi-layered SMD 0805 200 mA 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 3555246 TDK MEM2012F10R0T001 3-Leiter-Durchführungsfilter Filter Multi-layered SMD 0805 200 mA 1 pc(s) Piece
