Name: TDK MPZ1608S601ATA00 Chip Beads Ferrite bead High current SMD 1608 1 pc(s) Piece
Brand: TDK
SKU: 3555302
Availability: InStock

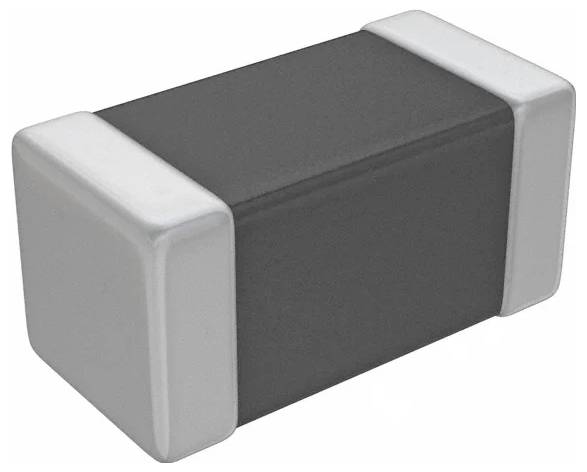

An electronic component with a rectangular shape and metallic ends, used in circuits for various applications.

Packaging type

Piece

Product type

Ferrite bead

Type

SMD

Max. temperature

125 °C

Features

High current

Datasheet (PDF)

Fast track dispatch on Thu 22 Oct

4000 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 10

Total (€ 0.05 / piece)

€ 0.50

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Chippoints for power lines MPZ series

Noise suppression solution for power lines.
In comparison with the MMZ-series it offers a low DC-resistance for high currents and is optimum for low power consumption.
Different frequency characteristics and two materials with different properties enable the suppression of disturbances of all kinds, from standard signals to high-speed signals.
It is also suitable for signal lines that require a low DC resistance.
Operating temperature range -55°C to +125°C.
Noise reduction for mobile devices such as smartphones and tablets, as well as various modules.
Noise suppression for PCs and recording devices, home appliances such as set-top boxes, Smart grids and industrial plants.
This text is machine translated.

Technical specifications

Packaging type: Piece

Product type: Ferrite bead

Features: High current

Type: SMD

Type: 1608

Length: 1.6 mm

Width: 0.8 mm

Max. temperature: 125 °C

Content: 1 pc(s)

Dim: (L x W) 1.6 mm x 0.8 mm

RoHS-compliant: Yes

Type: Chip Beads

UKCA: yes
