Name: TDK MPZ2012S102ATD25 Chip Beads Ferrite bead SMD 0805 150 mΩ 1000 Ω 1.5 A 1 pc(s) Tape on Full reel
Brand: TDK
SKU: 3555308
Availability: SoldOut

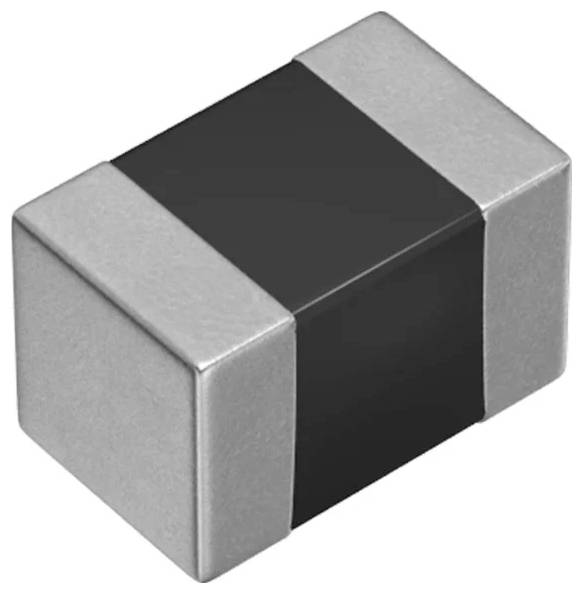

A small rectangular electronic component with a black center bordered by metallic ends, often used as an inductor or capacitor in circuits.

Packaging type

Tape on Full reel

Product type

Ferrite bead

Type

SMD

Resistance

150 mΩ

Max. temperature

125 °C

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 0.10 / piece)

€ 1.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Chippoints for power lines MPZ-series MPZ2012S102ATD25

Noise suppression solution for power lines.
In comparison with the MMZ-series it offers a low DC-resistance for high currents and is optimum for low power consumption.
Different frequency characteristics and two materials with different properties enable the suppression of disturbances of all kinds, from standard signals to high-speed signals.
It is also suitable for signal lines that require a low DC resistance.
Operating temperature range -55°C to +125°C.
Noise reduction for mobile devices such as smartphones and tablets, as well as various modules.
Noise suppression for PCs and recording devices, home appliances such as set-top boxes, Smart grids and industrial plants.
This text is machine translated.

Technical specifications

Packaging type: Tape on Full reel

Product type: Ferrite bead

Type: SMD

Type: 0805

Impedance at 100 MHz: 1000 Ω

Frequency: 100 MHz

Tolerance ±: 25 %

Resistance: 150 mΩ

Nominal current: 1.5 A

Material: Duplex steel

Length: 2 mm

Width: 1.25 mm

Height: 0.85 mm

Min. temperature: -55 °C

Max. temperature: 125 °C

Weight: 0.008 g

Content: 1 pc(s)

Dim: (L x W x H) 2 x 1.25 x 0.85 mm

RoHS-compliant: Yes

Type: Chip Beads

UKCA: yes
