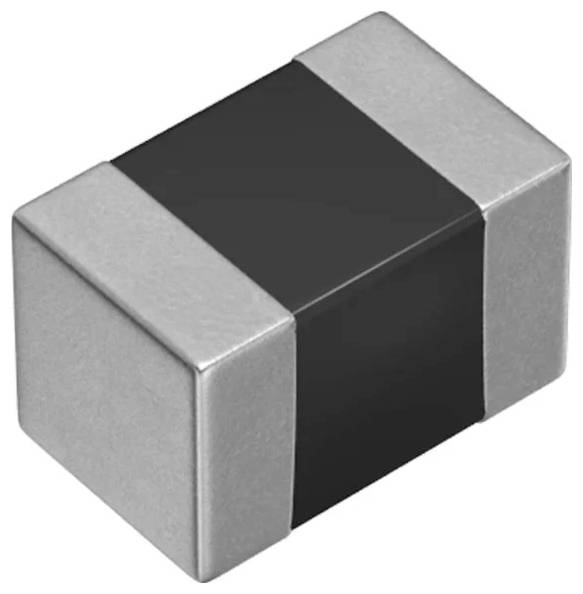

TDK MPZ2012S601ATD25 Chip Beads Ferrite bead SMD 0805 100 mΩ 600 Ω 2 A 1 pc(s) Tape on Full reel
Part number:
Item no:
Packaging type
Tape on Full reel
Product type
Ferrite bead
Type
SMD
Resistance
100 mΩ
Max. temperature
125 °C
Datasheet (PDF)
Number
Minimum order quantity: 10
Tape on Full reel
Piece(s) (Content: )
Piece(s) (Content: )
Total (€ 0.08 / piece)
€ 0.80
incl. VAT
14-day return policy included
Highlights & Details
Chippoints for power lines MPZ-series MPZ2012S601ATD25
- Noise suppression solution for power lines.
- In comparison with the MMZ-series it offers a low DC-resistance for high currents and is optimum for low power consumption.
- Different frequency characteristics and two materials with different properties enable the suppression of disturbances of all kinds, from standard signals to high-speed signals.
- It is also suitable for signal lines that require a low DC resistance.
- Operating temperature range -55°C to +125°C.
- Noise reduction for mobile devices such as smartphones and tablets, as well as various modules.
- Noise suppression for PCs and recording devices, home appliances such as set-top boxes, Smart grids and industrial plants.
- This text is machine translated.
Technical specifications
- Packaging type
Tape on Full reel
- Product type
Ferrite bead
- Type
SMD
- Type
0805
- Impedance at 100 MHz
600 Ω
- Frequency
100 MHz
- Test frequency
100 MHz
- Sample rate
100 MHz
- Tolerance ±
25 %
- Resistance
100 mΩ
- Nominal current
2 A
- Material
Duplex steel
- Length
2 mm
- Width
1.25 mm
- Height
0.85 mm
- Min. temperature
-55 °C
- Max. temperature
125 °C
- Weight
0.008
- Industrial packaging
Yes
- Content
1 pc(s)
- Dim
(L x W x H) 2 x 1.25 x 0.85 mm
- RoHS-compliant
Yes
- Type
Chip Beads
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3555314 TDK MPZ2012S601ATD25 Chip Beads Ferrite bead SMD 0805 100 mΩ 600 Ω 2 A 1 pc(s) Tape on Full reel
User & Safety Instructions
User & Safety Instructions 3555314 TDK MPZ2012S601ATD25 Chip Beads Ferrite bead SMD 0805 100 mΩ 600 Ω 2 A 1 pc(s) Tape on Full reel
